A portable artificial high directional system with the ability to be a tripod, a monopod, and a bipod all in one. With a precision two point head, the CMC Arizona Vortex can be rigged in various applications such as, a standard tripod or advanced set ups such as an A-frame, gin pole or multiple other imaginative configurations.

Kit Components

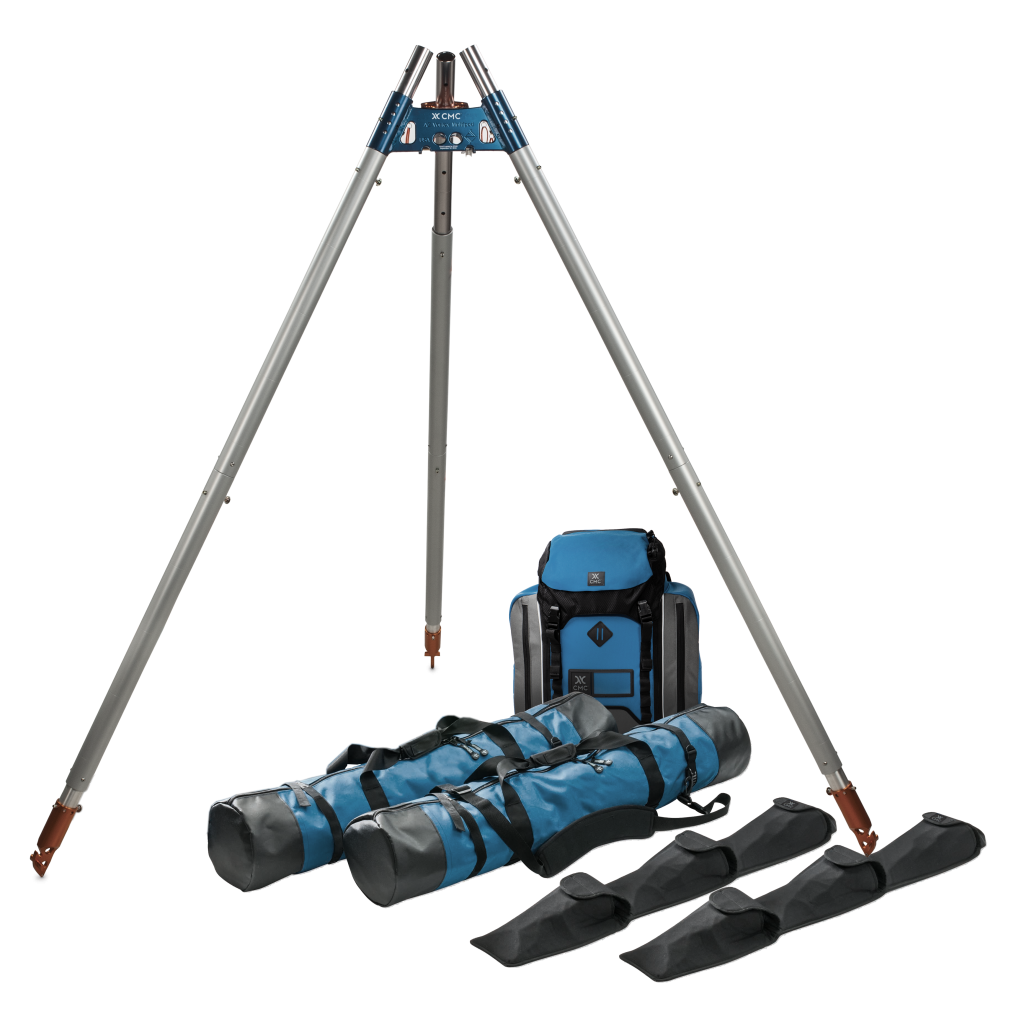

The Arizona Vortex Kit comes complete with:

• 2-Piece Head Set
• Head Set Pulley Wheel
• Head Pins (4)
• Inner Legs (3)
• Outer Legs (7)
• Leg/Foot Pins (17)
• Flat (Omni) Feet (3)
• Raptor (Claw) Feet (3)
• Orange Pin Flags (21)
• Adjustable Hobble Straps (3)
• 8mm Tether Cord (40ft)
• User Manual
• Vortex Bag System
  • RigTech Pack™
  • Leg Bags with Shoulder Straps (2)
  • Foot Set Sleeves (2)
  • Pin Storage Bag

Specifications

Min Height: 2.7 m (9 ft)
Max Height (with additional legs): 3.7 m (12 ft)
Weight (with both foot sets): 33 kg (72 lb)
Shipping Weight (including all parts, bags and packaging): 43 kg (95 lb)
Certification: Classified to NFPA 1983 (2017 ED) – General Use
MBS: 36 kN (8,093 lbf)
