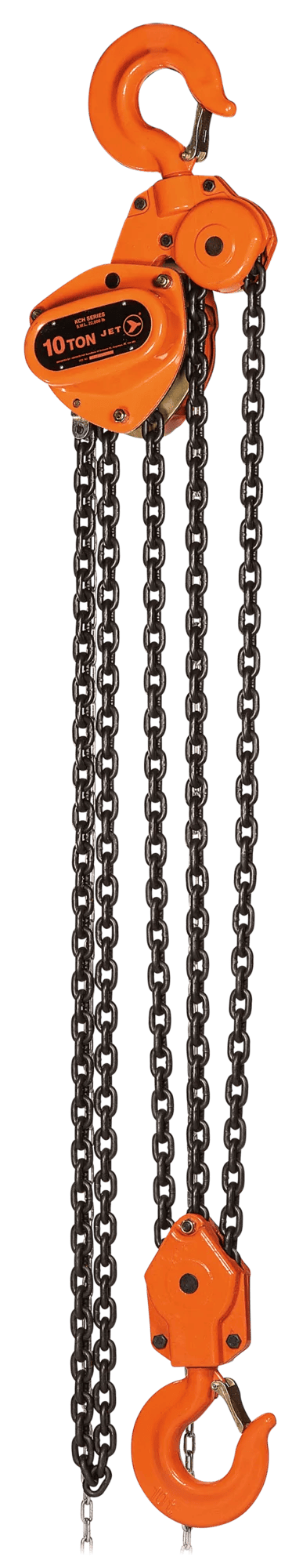

The JET Tools 101162 KCH Series chain hoist provides a 10' standard lift for loads rated at 10 tons (22,000 lbs). Its triple-spur gearing and sealed, maintenance-free bearings help limit operating effort. Braking combines a Weston-style dual-pawl mechanism, extra-heavy pawl springs and premium non-asbestos discs. An extra-thick ratchet gear helps shield the brake disc against contamination, while Grade 100 chain supports the hoist's heavy-duty lifting application.

• Lifting dimensions: 10' standard travel and 29-15/16" head room.
• Load-chain configuration: 3 falls with a 10mm chain diameter.
• At rated capacity, lifting requires 92 lbs of force; raising the load 1 ft requires pulling 384.6' of hand chain.
• Upper and lower safety hooks deform gradually to indicate overloads and incorporate cast safety latches. Selected internal components receive a corrosion-resistant finish.
• Includes a certificate documenting testing at 150% of rated capacity. Meets ASME B30.16 and is manufactured in an ISO 9001-2000 certified factory.
• Shipping weight: 172 lb (78 kg). Product number: 101162.
