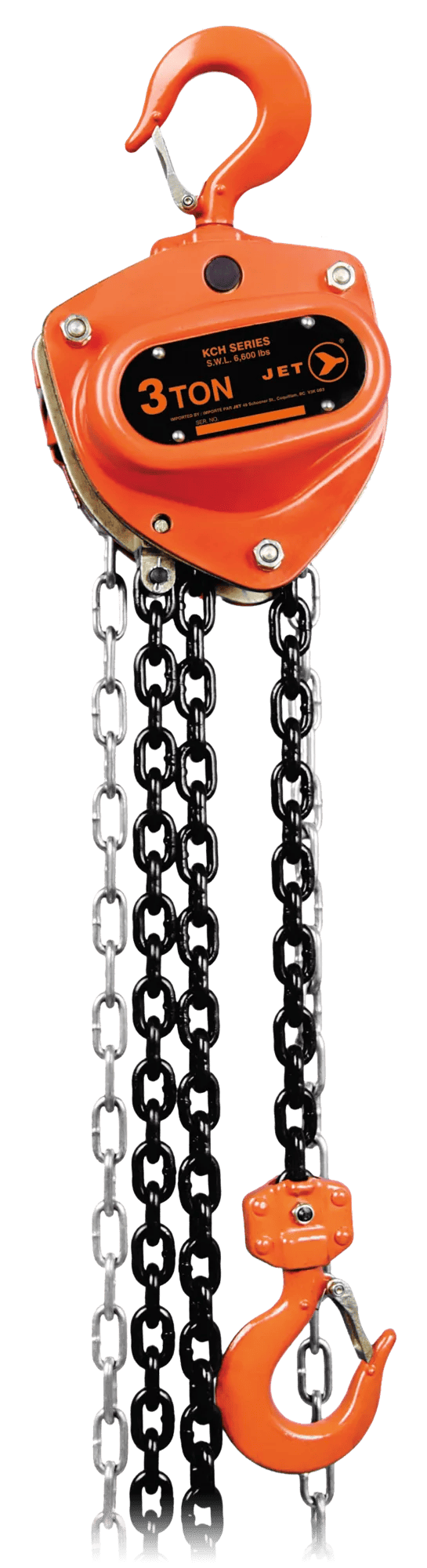

The JET Tools 101342 KCH Series chain hoist provides a 10' lift with a rated capacity of 3 tons (6,600 lbs). Its factory-set overload device activates automatically without operator input to help prevent serious overloading. This protection is standard on KCH models rated up to 5 tons. Triple-spur gearing supports efficient operation, while Grade 100 load chain provides increased strength. Premium non-asbestos brake discs are designed for extended service life. The manufacturer's part number is KCH-3010L.

• Lifting configuration: two falls, 7.1 mm load-chain diameter and 20" headroom.
• Operating effort at rated capacity: 79 lbs; raising the load by 1 ft requires pulling 114' of hand chain.
• Tested at 150% of rated capacity, with a certificate supplied; meets ASME B30.16.
• Manufactured in an ISO 9001-2000 certified factory. Shipping weight: 53.7 lb (24.4 kg).
• Dimensional references: H measures 20"; G measures 62.5 mm; F measures 52 mm; E measures 43.5 mm.
• Additional dimensional references: D measures 2-1/16"; C measures 4-1/8"; B measures 9-1/4"; A measures 6-5/8".
