product description

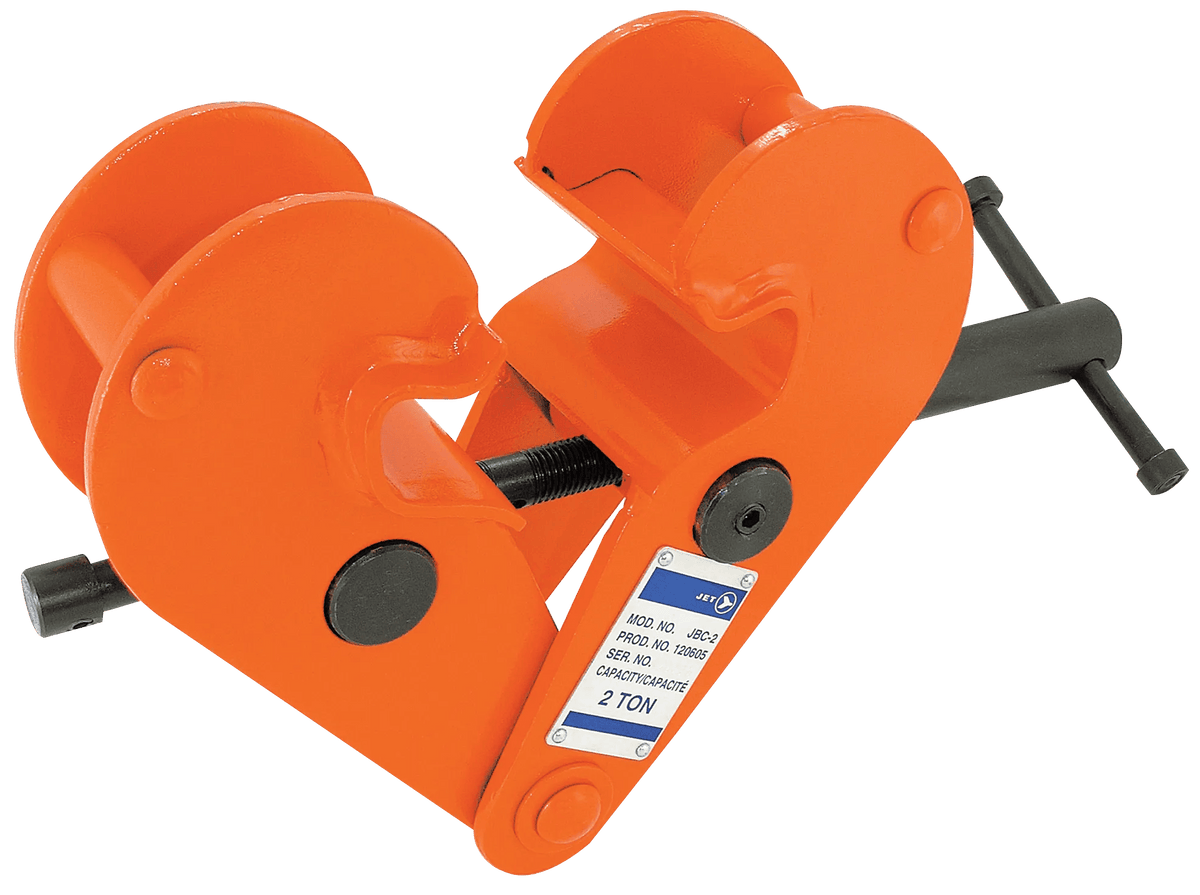

The JET Tools 120605 is a heavy duty beam clamp rated for 2 tons (4,000 lbs). It supports suspended loads and can also be inverted to lift flanged beams vertically. Matching jaw widths help maintain stability, while the jaw geometry moves load distribution away from flange edges to limit stress. A threaded handle assists installation and portability, and a locking screw helps keep the clamp tight during use.
- Adjustable flange fit: 2.95"–9.05".
- Load testing performed at 150% of rated capacity; beam lifting permits a maximum deviation of 15° from vertical.
- Integrated suspension bar keeps headroom requirements ultra low.
- Specification references: ANSI B30.20 and ANSI B30.11. A certificate is supplied.
- Product weight: 14.168 lb (6.44 kg).
- Shipping weight: 15.2 lb (7 kg).
Dimensional Reference
| Reference | Measurement |
|---|---|
| A — maximum | 9.65" |
| B — minimum | 7.48" |
| B — maximum | 14.17" |
| F — minimum | 3.07" |
| F — maximum | 5.31" |
| H | .80" |
| G | 1.10" |
| E | 8.46" |
| D | .28" |
| C | 2.91" |
