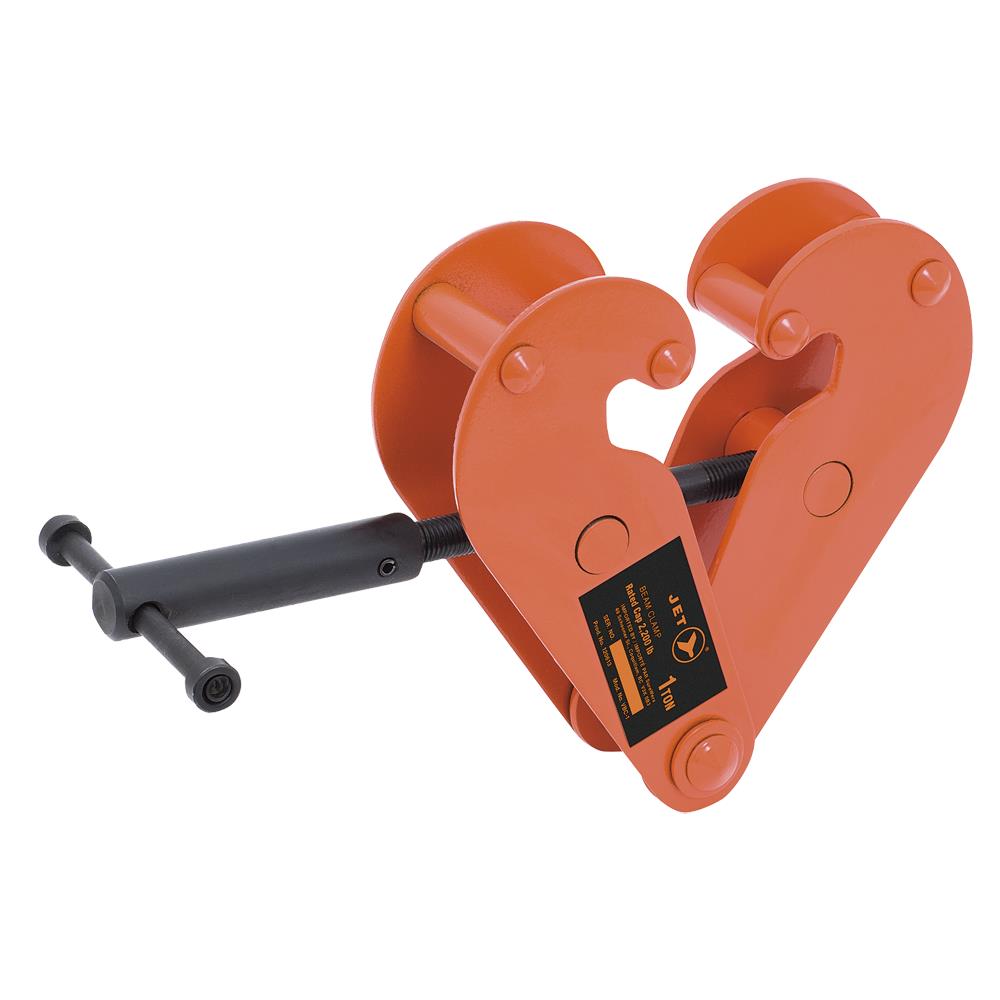

The JET Tools 120613 VBC Series beam clamp combines all-steel construction with an adjustable fit for beam flanges measuring 2-61/64" to 8-21/32" wide. Its 1-ton capacity corresponds to a rated load of 2,200 lbs. An integrated suspension bar keeps headroom requirements very low. The clamp meets ANSI B30.11 specifications and includes a certificate, with testing performed at 125% of its rated capacity. Extension kits accommodate larger beam widths.

• Capacity: 1 ton; rated load: 2,200 lbs; shipping weight: 9.95 lb (4.5 kg).
• Adjustable flange range: 2-61/64" to 8-21/32"; all-steel construction with an integrated suspension bar.
• Dimensional references: H: 7/8"; G: 63/64"; E: 8-15/32"; D: 13/64"; C: 2-33/64".
• Dimension A maximum: 10-1/4". Dimension B maximum: 14-11/64"; minimum: 7-3/32". Dimension F maximum: 4-1/64"; minimum: 6-3/32".
• ANSI B30.11 specifications met, certificate included; tested at 125% of rated capacity.
