product description

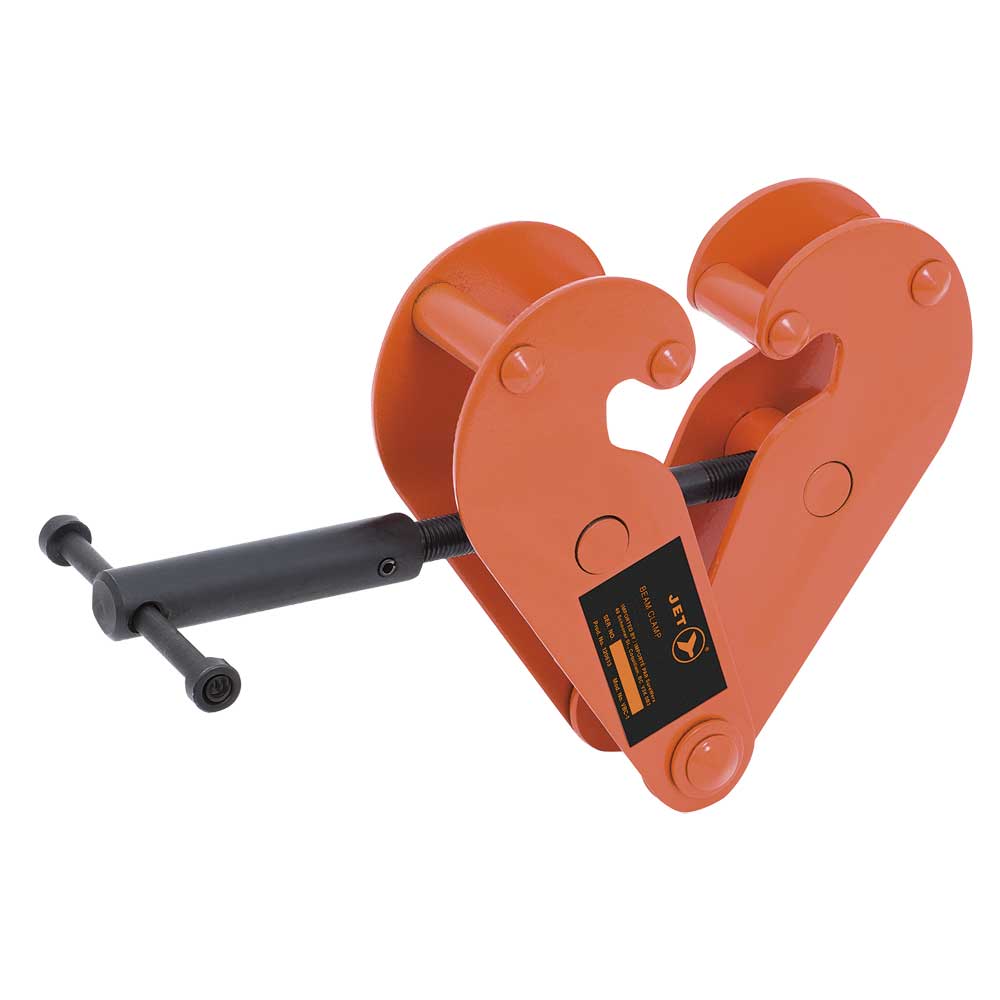

The JET Tools 120617 VBC Series Beam Clamp has a 5-ton capacity and an all-steel build. Its adjustable fit accommodates different beam and flange widths, with a rated flange range of 3-5/32" to 12-39/64". An integrated suspension bar keeps headroom requirements very low. For larger beam widths, extension kits provide an adjustment option. The clamp meets ANSI B30.11 specifications and includes a certificate.
- Rated load: 5 tons / 11,000 lbs.
- Capacity testing performed at 125% of the rated load.
- Steel construction throughout the clamp.
- Adjustable beam fit with an integrated suspension bar.
- ANSI B30.11 certificate supplied with the clamp.
- Shipping weight: 24.25 lb (11 kg).
| Dimension | Measurement |
|---|---|
| H | 1-7/64" |
| G | 1-49/64" |
| Minimum F | 8-55/64" |
| Maximum F | 5-1/2" |
| E | 10-1/4" |
| D | 25/64" |
| C | 4-21/32" |
| Maximum B | 19-19/64" |
| Minimum B | 9-1/4" |
| Maximum A | 13-15/16" |
