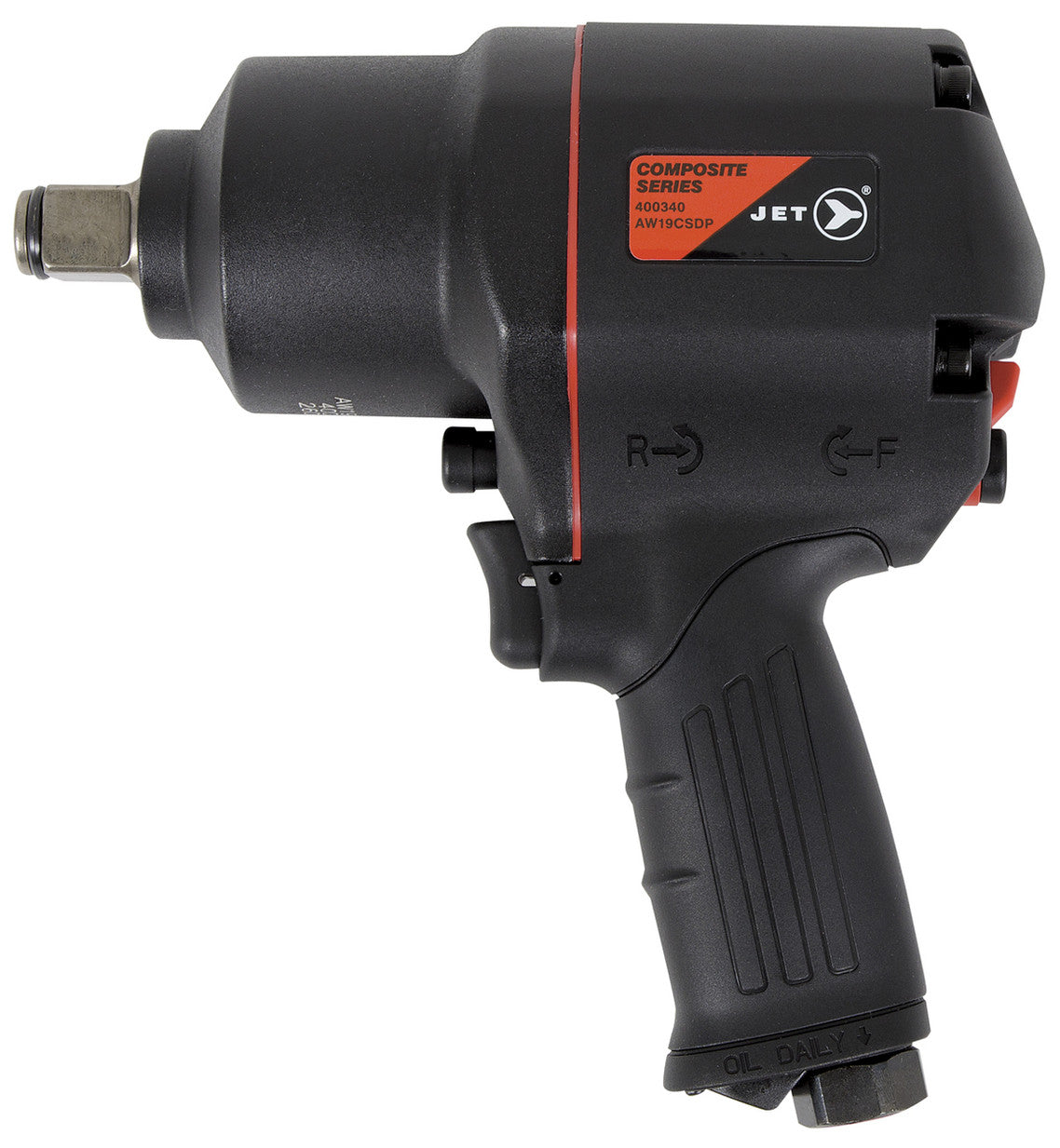

The JET Tools AW19CSDP is a super heavy duty pneumatic impact wrench with a composite body and a 3/4" square drive. Designed for automotive servicing, industrial maintenance and farm applications, it handles work involving trucks, shocks, frames and springs. Its reverse torque reaches 1,250 ft/lbs for loosening rusted nuts. Weighing 7.74 lb (3.51 kg), the tool combines a Twin Hammer mechanism with an “Up Hill – Soft Grip” pistol handle for balanced handling, reduced vibration and comfort during extended tasks. Catalogue reference: SUW-400340; product number: 400340.

• Torque output: forward maximum of 1,150 ft/lbs and reverse maximum of 1,250 ft/lbs; working torque is 800 ft/lbs in either direction.
• Operating specifications: 6,800 RPM free speed, 1-1/2" standard bolt capacity and 8.61" overall length.
• Air requirements: recommended pressure of 90 PSI, average consumption of 6.9 cfm, minimum hose size of 1/2" and a 3/8" NPT air inlet.
• Direction and output controls: “Push Through” operation permits direction changes with one hand; an accessible lever-style knob provides three settings in both forward and reverse.
• Construction features: the Twin Hammer assembly delivers balanced impacts; a treated anvil supports service life, an inlet screen helps protect the motor, and the handle-mounted exhaust is muffled.
• Measured operating levels: sound pressure of 100.1 dBA and vibration of 18.7 m/s².
