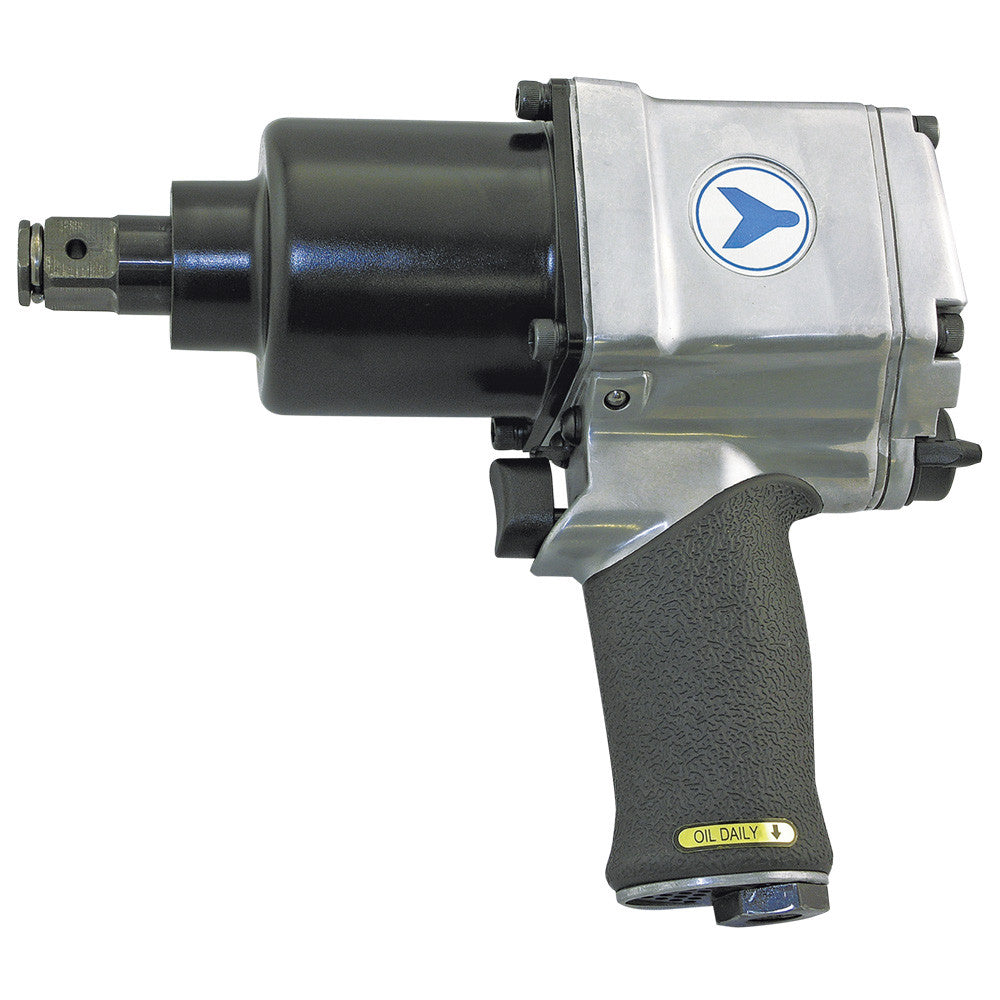

The JET Tools AW19THA is a heavy-duty impact wrench with a 3/4" square drive. Its twin-hammer mechanism delivers powerful, balanced impacts while helping reduce vibration. An insulating rubber grip supports operator comfort and safety, with exhaust routed through the handle. A steel housing protects the hammer assembly, while the three-piece body simplifies maintenance. The screened air inlet helps extend motor life, and the anvil combines snap-ring and pin-hole socket retention.

• Torque specifications: 1,000 ft/lbs maximum; 460–1,000 ft/lbs working range; forward working torque listed as 1,030 ft/lbs.
• Operating specifications: 6,500 RPM free speed, 7/8" standard bolt capacity and 3/4" square drive. The forward/reverse valve provides three positive forward throttle settings and one positive reverse setting.
• Air requirements: average consumption of 7 cfm, minimum hose size of 3/8" and a 3/8" NPT inlet.
• Dimensions and weight: 9.2" overall length; 9.9 lb / 4.49 kg.
• Sound pressure: 96.8 dBA. Vibration: 9.62 m/s².
• Identification: model AW19THA, SKU SUW-400310 and product number 400310. Replacement rubber handle cover reference: 905125.
