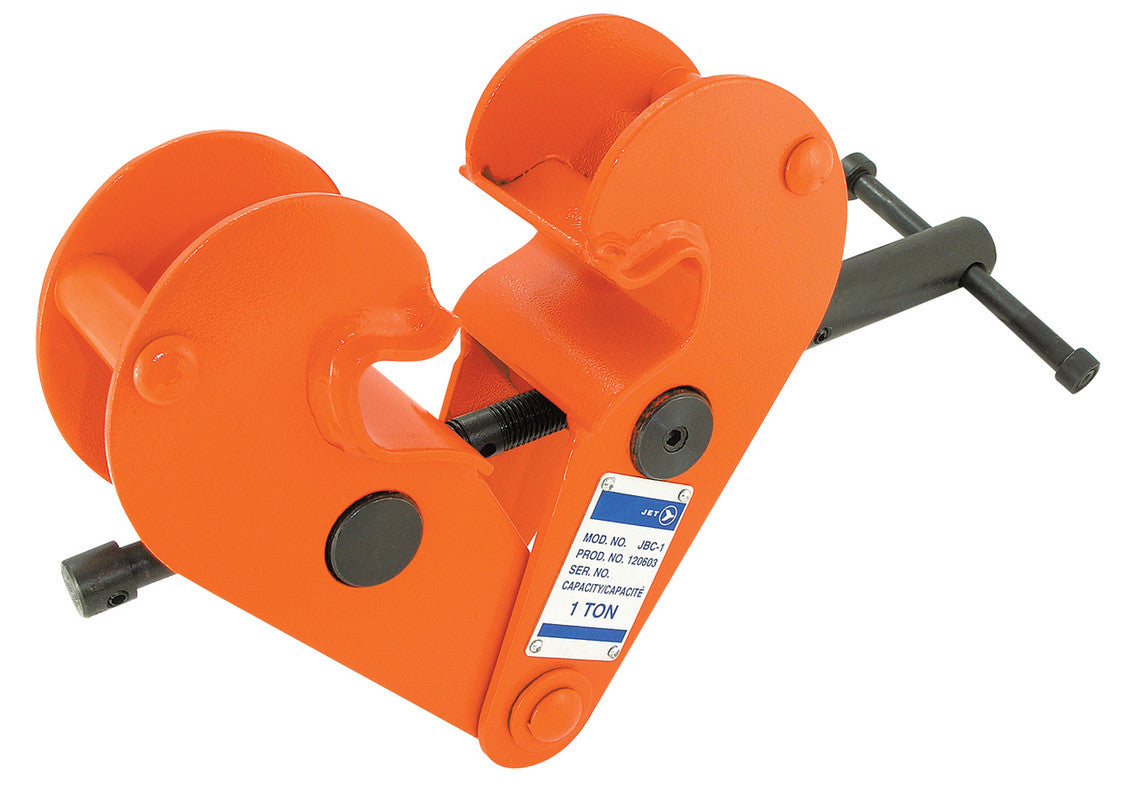

The JET Tools JBC-1 beam clamp supports suspended loads and can also be inverted to lift flanged beams vertically. Its equal-width jaws promote stability, while their shape spreads loading away from flange edges to reduce stress. A threaded handle simplifies installation and supports portability, and a dedicated locking screw helps prevent loosening. Adjustable jaws accommodate different beam and flange widths, with an integrated suspension bar keeping headroom requirements very low.

• Capacity: 1 Ton, with a rated load of 2,000 lbs. Rated flange width range: 2.95"–9.05".
• Tested at 150% of rated capacity. For beam lifting, the permitted angle from vertical is limited to 15°. Conforms to ANSI B30.20 and ANSI B30.11; a certificate is supplied.
• Product weight: 11.836 lb (5.38 kg). Shipping weight: 13 lb (5.9 kg).
• Dimensional references: A maximum 9.65"; B minimum 7.48" and maximum 14.17"; C 2.76".
• Further dimensional references: F minimum 3.07" and maximum 5.31"; E 8.46"; D .20"; H .80"; G 1.10".
• Model: JBC-1. SKU: SUW-120603. Product number: 120603.
