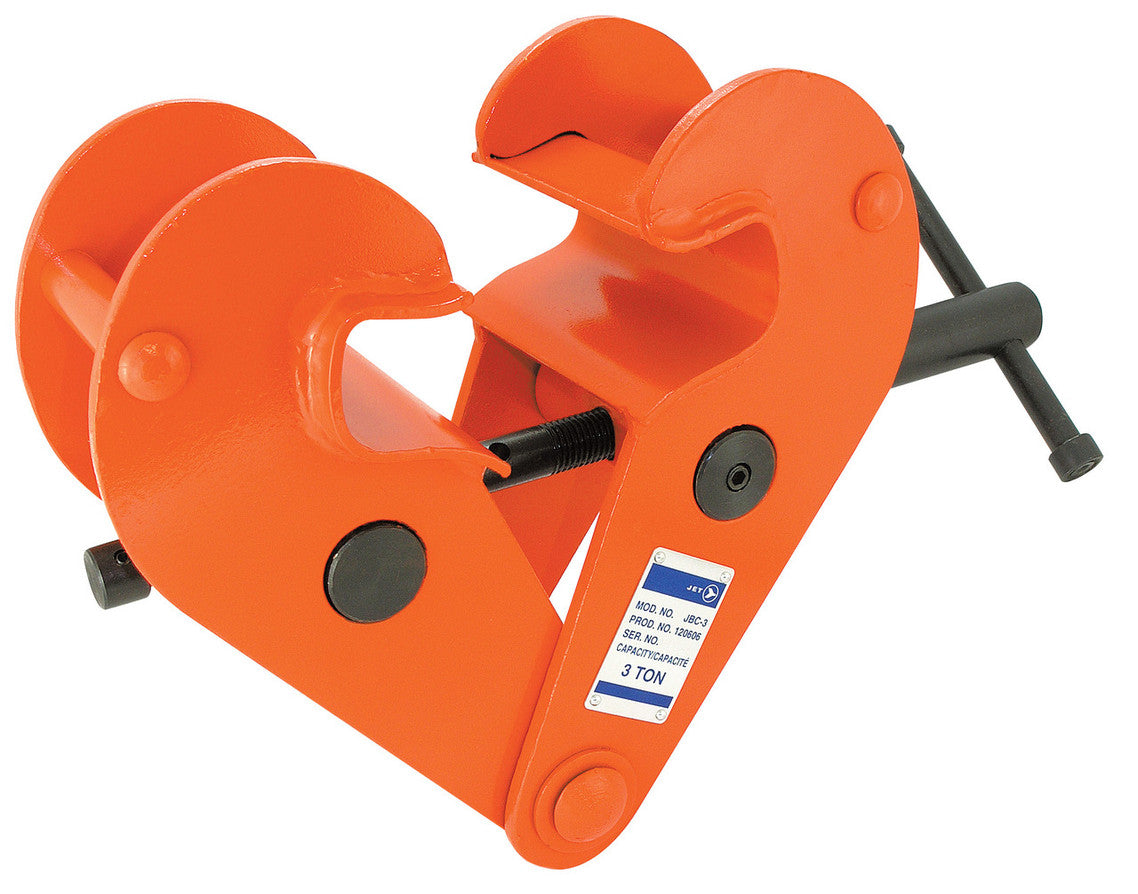

The JET Tools JBC-3 beam clamp, model SUW-120606, supports suspended loads and can also operate inverted for vertical lifting of flanged beams. Its equally wide jaws provide stability, while their shape directs loading inward from the flange edges to reduce flange stress. A threaded handle facilitates installation and portability, and a dedicated locking screw helps maintain a tight fit. Adjustable jaws accommodate different beam and flange widths, with an integrated suspension bar keeping headroom requirements very low.

• Load rating: 3 tons, equivalent to 6,000 lbs. For beam lifting, the permitted angle is no more than 15° off vertical.
• Flange width range: 3.35" to 11". Dimension A has an 11.22" maximum; dimension B ranges from 9.84" minimum to 17.52" maximum.
• Other dimensions: H = .87"; G = 2.17"; F ranges from 4.33" minimum to 6.30" maximum; E = 10.24"; D = .31"; C = 4.65".
• Unit weight: 26.84 lb (12.2 kg). Shipping weight: 28.8 lb (13.1 kg).
• Conforms to ANSI B30.11 and B30.20 specifications, with a certificate included. Test load is 150% of the rated capacity.
• Heavy duty JBC-3 configuration with locking screw; product number 120606.
