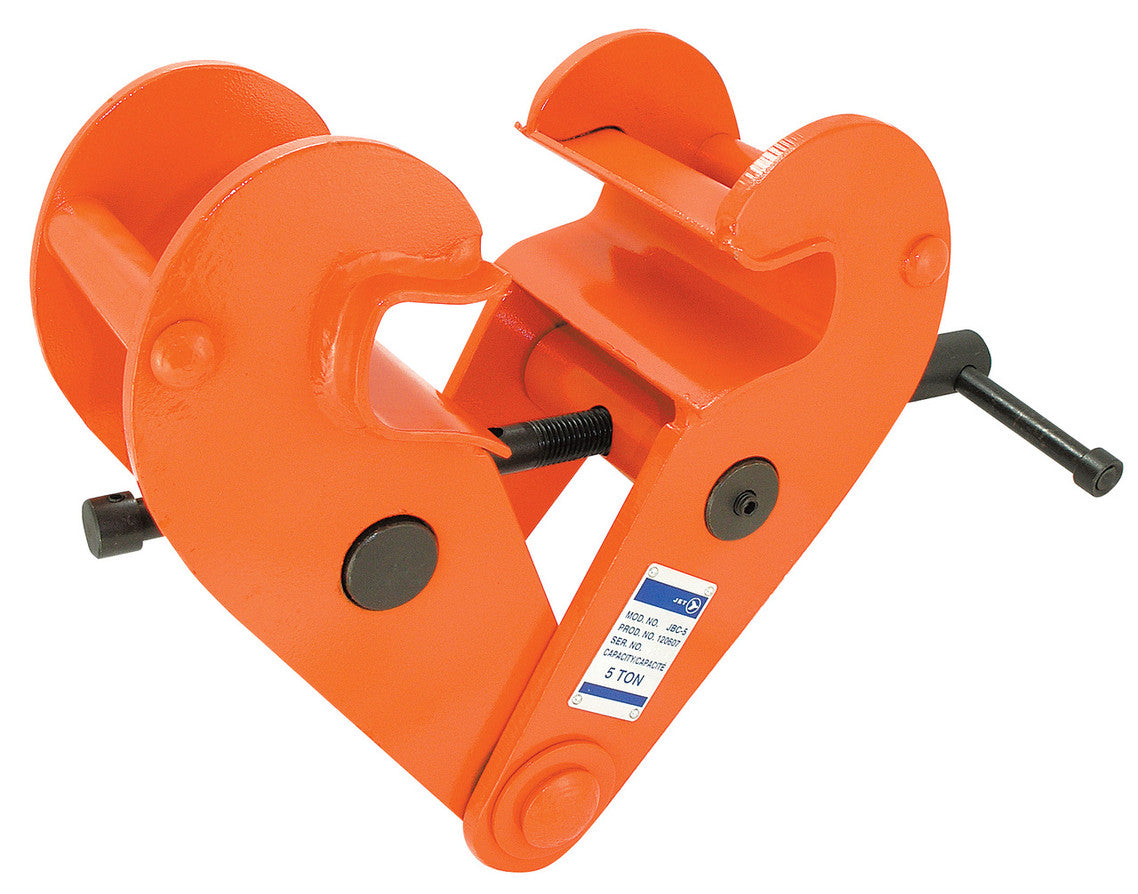

The JET Tools JBC-5 beam clamp, SKU SUW-120607, provides a heavy-duty attachment for load suspension and can also be inverted to lift flanged beams vertically. Its equally wide jaws support stability, while their shape directs loading away from flange edges to reduce flange stress. A threaded handle supports straightforward installation and portability, with a locking screw helping maintain tightness. The integrated suspension bar keeps headroom requirements low.

• Capacity: 5 tons, with a rated load of 10,000 lbs. Load testing is performed at 150% of the rated capacity.
• Adjustable fit accommodates flange widths from 3.5" to 12"; the locking screw secures the adjustment.
• For beam lifting, the permitted deviation from vertical is a maximum of 15°.
• Conforms to ANSI B30.11 and B30.20 specifications; a certificate is included.
• Dimensions: G 2.05"; H 1.10"; C 5.51"; D .39"; E 10.63"; A maximum 12.60"; B minimum 10.43" and maximum 19.09"; F minimum 4.92" and maximum 6.50".
• Product weight: 35.728 lb (16.24 kg). Shipping weight: 38 lb (17.3 kg). Product number: 120607; SKU: SUW-120607.
