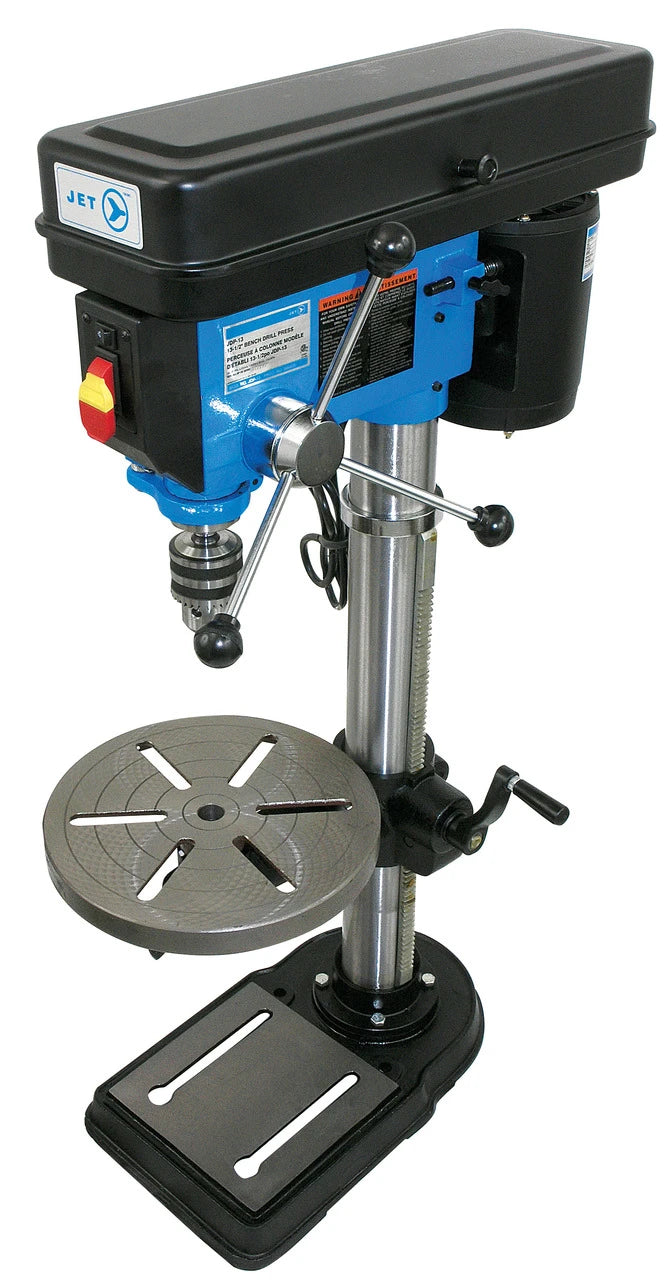

The JET Tools JDP-13 bench-top drill press provides 12 spindle speeds for varied drilling tasks, powered by a 3/4 HP motor. Its rotating worktable has a quick-release clamp and tilts up to 45° in either direction. Clamping slots in both the table and base support workpiece securing, while a threaded-rod depth adjustment with two lock nuts controls drilling depth. A built-in work lamp operates independently through its own switch; the bulb is not included.

• Drive and controls: 3/4 HP, single-phase motor rated 115/230V and 5.2/2.6 Amps, pre-wired for 115V. Spindle speed selection spans 280–3,000 RPM across 12 settings. The on/off safety switch includes a removable lock-out key.
• Speed adjustment: a hinged cover over the belt and pulleys opens fully, and the motor mounting position is fully adjustable to facilitate spindle speed changes.
• Drilling specifications: 13-1/4" swing, 5/8" chuck size, 5/8" drilling capacity, 3-1/8" spindle travel and MT2 spindle taper. Supplied equipment includes a drill chuck with its key.
• Worktable: 11-3/8" diameter, rotation capability, quick-release clamp and 0°–45° tilt to the right or left. Maximum spindle-to-table distance is 17-1/2".
• Dimensions: spindle-to-base distance of 24", column diameter of 2-7/8", overall height of 38-1/2" and a base measuring 10" x 16-1/2".
• Product identification: JET Tools bench-top drill press, manufacturer model JDP-13; SKU SUW-200225.
