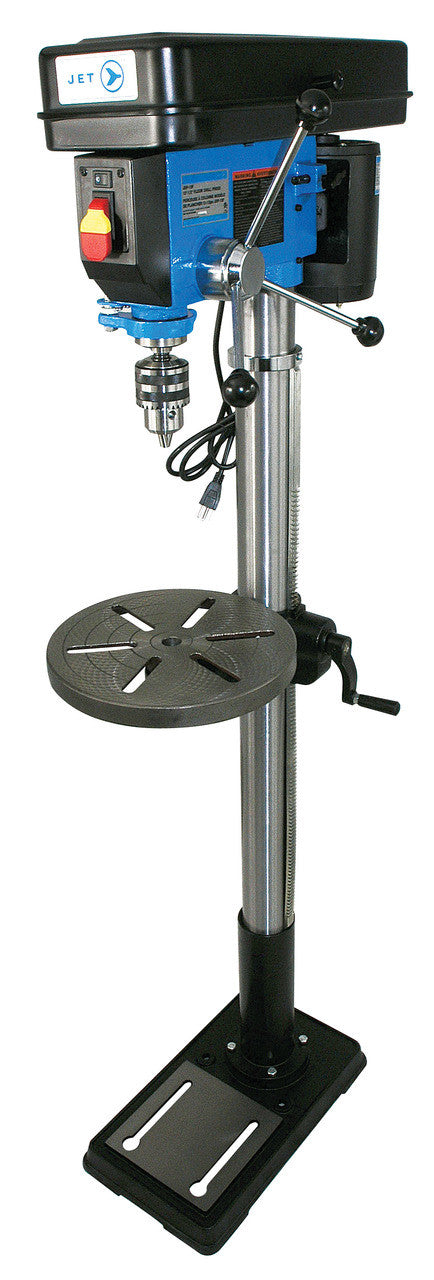

The JET Tools JDP-13F floor drill press provides 12 spindle speeds for varied drilling applications, powered by a 3/4 HP motor. Its rotating worktable has a quick-release clamp and tilts in either direction, while slots in both the table and base support workpiece clamping. A threaded-rod depth adjustment with two locking nuts controls drilling depth. Speed adjustments are supported by a hinged belt-and-pulley cover and an adjustable motor mounting arrangement. The on/off control includes a removable lock-out key, and the integrated work lamp has its own switch.

• Drive specifications: 3/4 HP, single-phase, 115/230V motor rated at 5.2/2.6 Amps; wired for 115V. Choose from 12 spindle speeds spanning 280–3,000 RPM.
• Drilling specifications: 13-1/4" swing, 5/8" drilling capacity, 5/8" chuck, MT2 spindle taper and 3-1/8" spindle travel.
• Working clearances: spindle-to-base distance of 48-3/4" and maximum spindle-to-table distance of 31-1/2".
• Table specifications: 11-3/8" diameter, rotation capability, quick-release clamp and 0°–45° tilt to either side. Clamping slots are provided in the table and base.
• Machine dimensions: 61-5/8" overall height, 2-7/8" column diameter and a base measuring 10" x 16-1/2".
• Supplied equipment includes a drill chuck and chuck key. The work lamp requires a bulb, which is not included. Manufacturer model: JDP-13F; catalogue SKU: SUW-200275.
