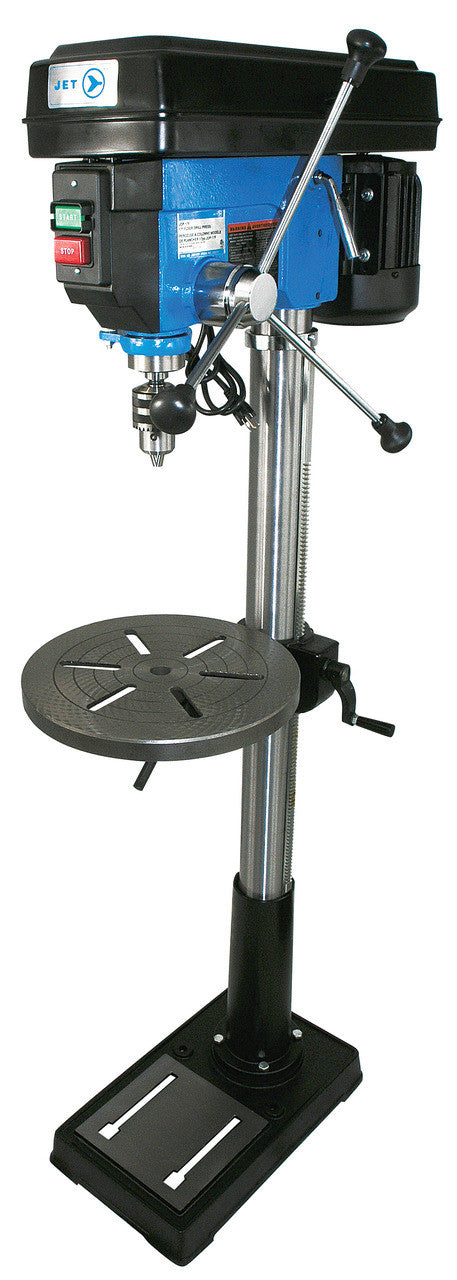

The JET Tools JDP-17F floor drill press combines a 1 HP motor with a 17" swing for drilling larger workpieces. Its 16 spindle speeds accommodate varied drilling tasks. Speed adjustments are supported by a fully hinged cover over the belt and pulleys, plus a quick-adjust motor mount. The safety on/off switch includes a removable locking key, while the built-in work lamp has its own switch; the bulb is not included. A threaded rod with two locking nuts provides positive depth adjustment. Clamping slots in both the table and base help secure workpieces, and a drill chuck with key is included.

• Motor: 1 HP, single-phase, 115/230V, rated at 8.5/4.25 Amps; supplied pre-wired for 115V.
• Drilling specifications: 17" swing, 5/8" chuck size and 5/8" drilling capacity; 16 spindle speeds spanning 220–3,380 RPM.
• Spindle details: MT2 taper and 3-1/4" travel; distance from spindle to base is 48-3/8", with a maximum spindle-to-table distance of 28".
• The 13-3/4" diameter worktable rotates, uses a quick-release clamp and tilts from 0° to 45° in either direction.
• Floor-model dimensions: 64-1/2" overall height, 3-1/8" column diameter and a 12" x 19-3/4" base.
• Manufacturer model: JDP-17F; product SKU: SUW-200278. Standard equipment includes the drill chuck and its key.
