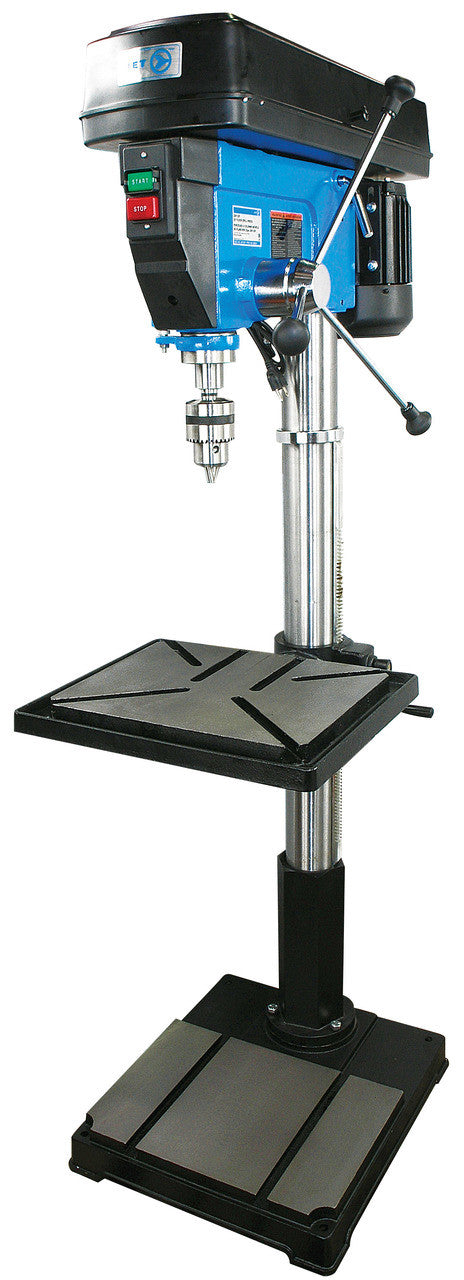

The JET Tools JDP-22F is a floor drill press with a 22" swing for drilling larger workpieces. Its 1-1/2 HP motor drives 12 selectable spindle speeds to suit a range of drilling applications. A hinged cover over the belt and pulleys, paired with a quick-adjust motor mount, simplifies speed changes. The rotating worktable includes a quick-release clamp and tilts in either direction, while slots in both the table and base provide workpiece clamping locations.

• Drilling specifications: 3/4" chuck, 1-1/4" drilling capacity, 4-1/2" spindle travel and MT3 spindle taper. The 12 spindle speeds span 180–4,200 RPM.
• Motor and controls: 1.5 HP, single-phase, 115/230V, rated at 10.0/5.0 amps and pre-wired for 115V. The on/off safety switch has a removable locking key.
• Worktable and clearances: table dimensions are 16-1/2" x 18-3/4", with 0°–45° tilt to the right or left. Maximum spindle-to-table distance is 29"; spindle-to-base distance is 49".
• Machine dimensions: 3-5/8" column diameter, 69-1/4" overall height and a base measuring 19-5/8" x 22-1/2".
• Depth control uses two lock nuts on a threaded rod for accurate settings. An integrated work lamp has its own switch and requires an outdoor-rated bulb, which is not included.
• Included equipment: drill chuck and chuck key. Manufacturer model: JDP-22F; product SKU: SUW-200357.
