product description

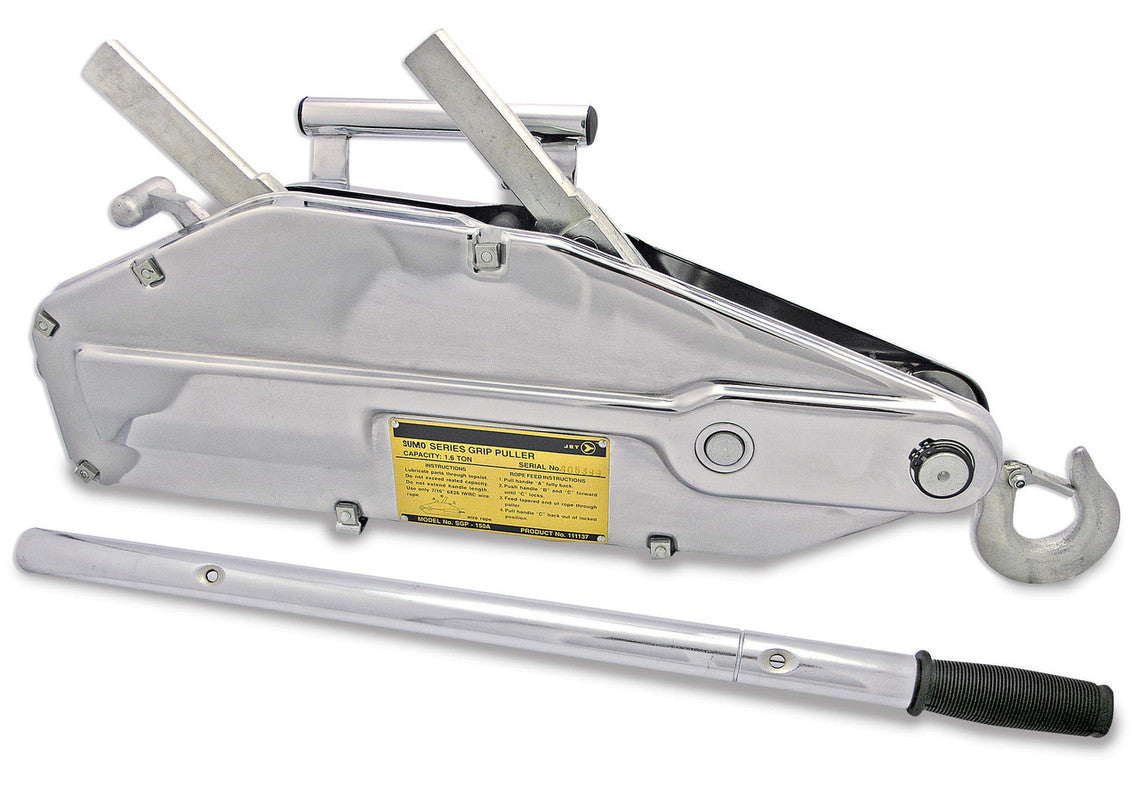

The JET Tools JGP-150A SUMO® grip puller handles lifting, pulling, lowering and stretching tasks involving heavy loads, with operation possible in any position. Its compact housing uses high-strength steel, while a single operating lever moves wire rope through two interlocking jaw sets designed to resist wear. Parallel clamping spreads the grip across a broad contact area to reduce rope wear and operating effort. A release lever disengages the rope clamps for installation. This heavy-duty unit is supplied without cable.
- Rated lifting capacity: 1-1/2 tons (3,520 lbs). Rated pulling capacity: 2.8 tons (5,720 lbs).
- Accepts standard ASA and IWRC wire rope with a 7/16" diameter; rope is not included. Operating rope advance is 2.36".
- A forward-lever shear pin provides overload protection by breaking under overload. Replacement does not require load removal, and spare pins are stored in the carrying handle.
- Telescopic handle length: 44". Effort at rated load: 93 lbs.
- Dimensions, L × W × H: 21-1/2" × 3-3/4" × 10-1/4". Product weight: 39.6 lb (18 kg). Shipping weight: 45.2 lb (20.5 kg).
- Meets ANSI B30.21. An individual serial number supports test-certificate traceability, and the certificate is included. SKU: SUW-111137; product number: 111137.
