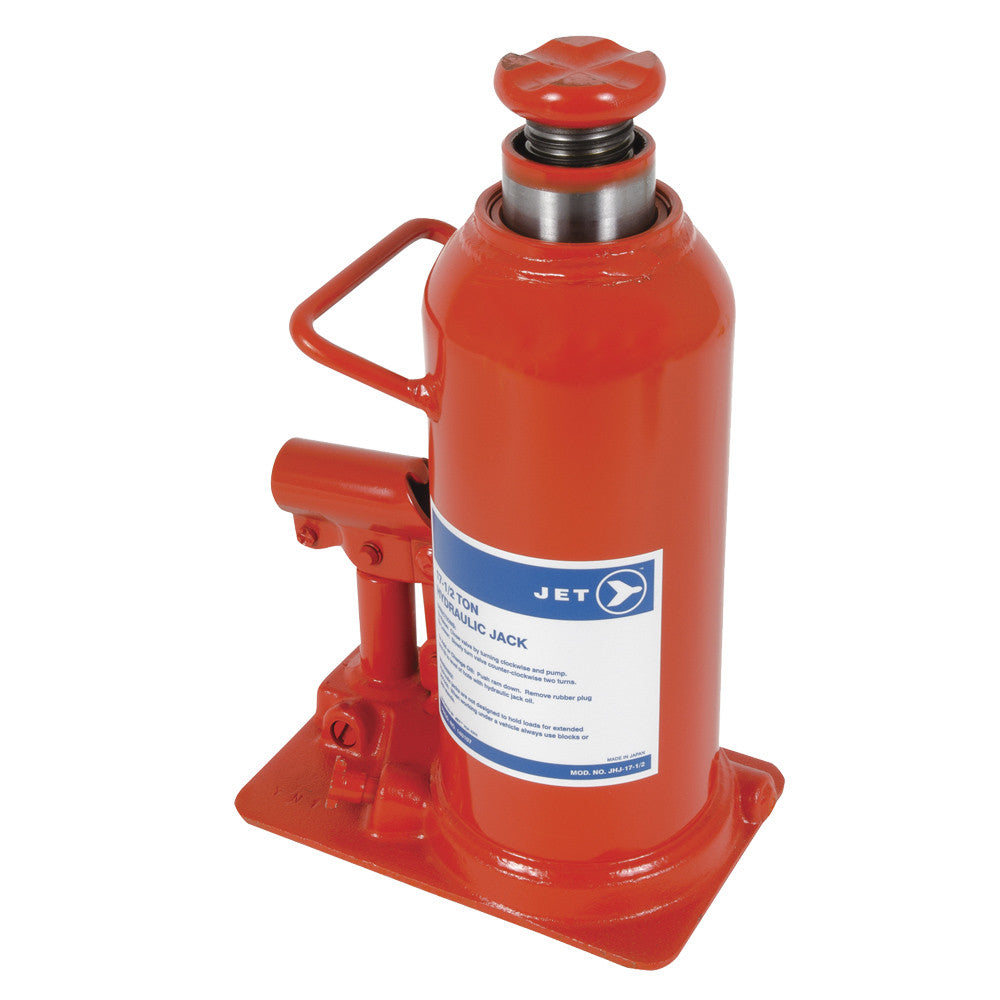

The JET Tools JHJ-17-1/2 hydraulic bottle jack provides industrial lifting with a 17-1/2 Ton rated capacity. It operates vertically, at an angle or horizontally, with valving that keeps the handle upright during horizontal use. Electrical welds join the base and cylinder for strength and leak prevention. A cleated steel saddle supports the lift, while an extension screw adjusts the low pickup height. Temperature extremes do not affect operation. The jack is fully serviceable, using shared release-valve assemblies and interchangeable repair parts.

• Rated load: 17-1/2 T; tested beyond 150% of its rated capacity.
• Height when closed: 10-7/16"; maximum extended height: 20-1/16".
• Piston stroke: 6-1/2"; head screw height: 3-1/8".
• Steel lifting saddle with cleats; handle supplied in 3 pieces.
• Base dimensions: 7-1/8" x 4-5/8"; jack weight: 23.672 lb (10.76 kg); shipping weight: 24 lb (10.9 kg).
• Manufactured in Japan to JIS and ANSI standards. Manufacturer part number: JHJ-17-1/2; SKU: SUW-140107.
