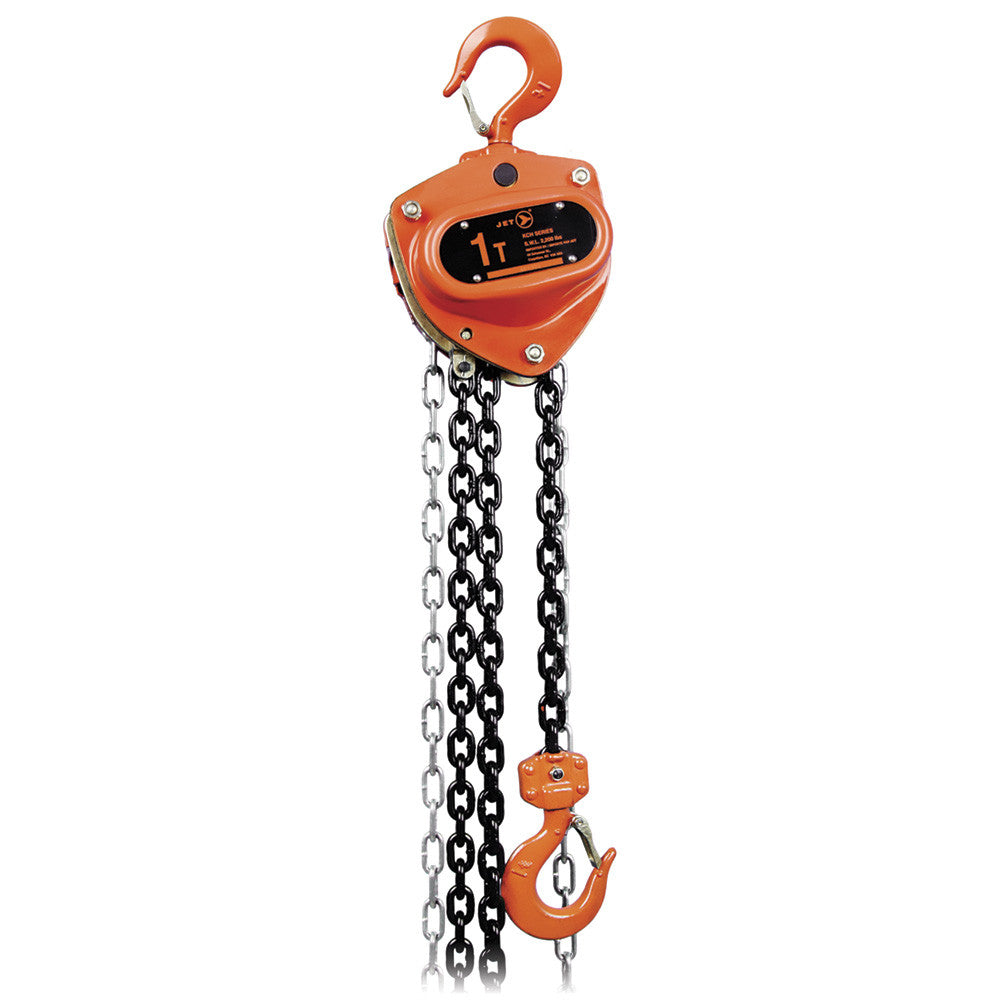

The JET Tools KCH-1010 is a heavy-duty KCH Series chain hoist rated for 1 ton (2,200 lbs), with a standard lifting height of 10'. Its triple-spur gearing supports efficient operation, while sealed, maintenance-free bearings help limit the effort required from the operator. The braking assembly combines a dual-pawl Weston-style mechanism, extra-heavy pawl springs and premium non-asbestos discs. A specialized finish provides corrosion resistance on selected internal components.

• Lifting specifications: one chain fall, 6.3mm Grade 100 load chain and 11-5/8" headroom. Lifting the rated load requires 64 lbs of force; raising it by 1 ft requires pulling 43' of hand chain.
• Brake protection: an extra-thick ratchet gear helps shield the brake disc against contamination, and the premium-grade disc material is selected for extended service life.
• Both safety hooks are designed to bend gradually as an overload warning. Cast hook latches are specified to surpass industry-standard requirements.
• Each hoist undergoes testing at 150% of its rated capacity and includes a certificate. Meets ASME B30.16; manufactured in an ISO 9001-2000 certified factory.
• Dimensional references: H = 11-5/8"; G = 45mm; F = 40mm; E = 33mm; D = 1-1/8"; C = 2"; B = 6-5/16"; A = 6-5/16".
• Product weight: 27.896 lb (12.68 kg). Shipping weight: 28.8 lb (13.1 kg). Manufacturer part number: KCH-1010. Catalogue SKU: SUW-101112.
