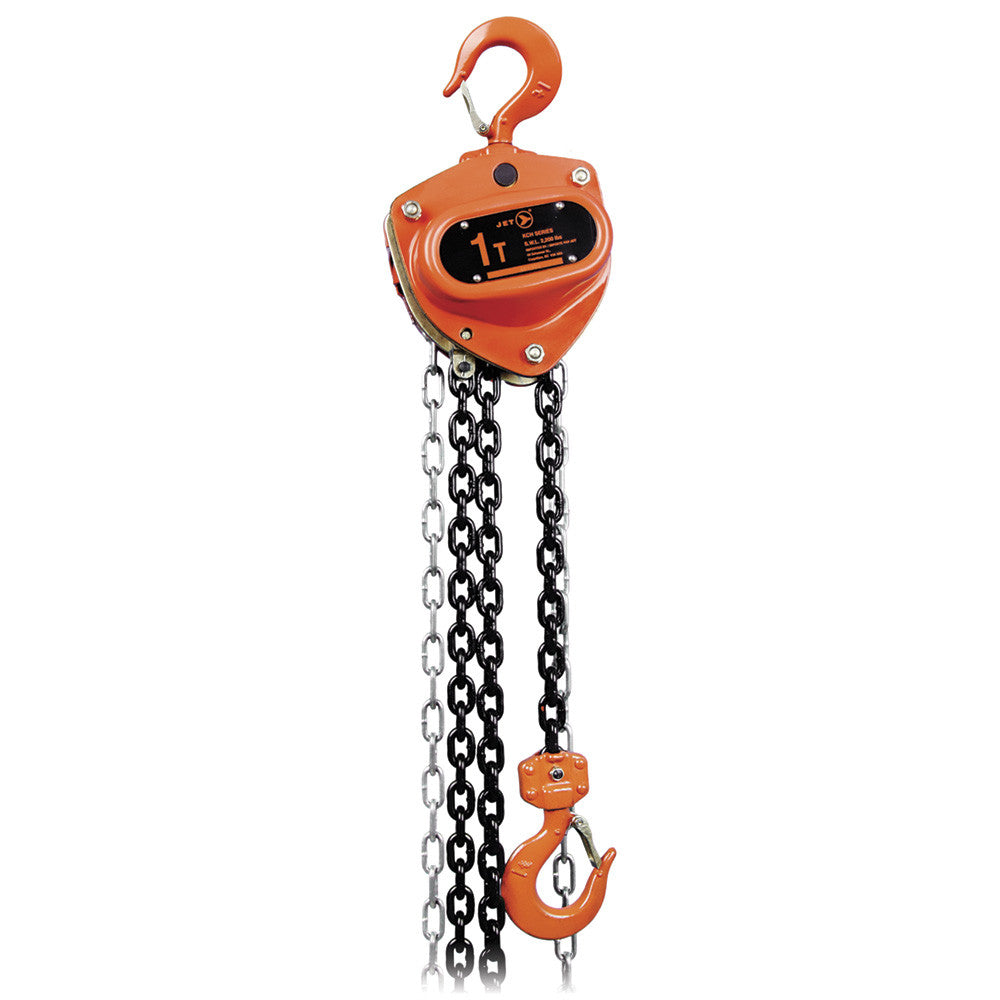

The JET Tools KCH-1010L is a heavy duty KCH Series chain hoist rated for 1 ton (2,200 lbs), with a standard lift of 10'. Its factory-set overload device activates automatically without operator input to prevent serious overloading. Triple spur gearing supports efficient operation, while Grade 100 load chain and premium non-asbestos brake discs provide the lifting and braking components. The hoist meets ASME B30.16, comes with a certificate documenting testing at 150% of rated capacity, and is manufactured in an ISO 9001-2000 certified factory.

• Identification: MPN KCH-1010L; catalogue SKU SUW-101312.
• Lifting configuration: one fall, 6.3 mm load chain diameter and 11-5/8" headroom.
• Operating effort: lifting the rated capacity requires 64 lbs of force; raising a load by 1 ft requires pulling 43' of hand chain.
• Shipping weight: 28.8 lb (13.1 kg).
• Dimensional references: A measures 6-5/16"; C measures 2"; B measures 6-5/16"; D measures 1-1/8".
• Additional dimensional references: H measures 11-5/8"; G measures 45 mm; E measures 33 mm; F measures 40 mm.
