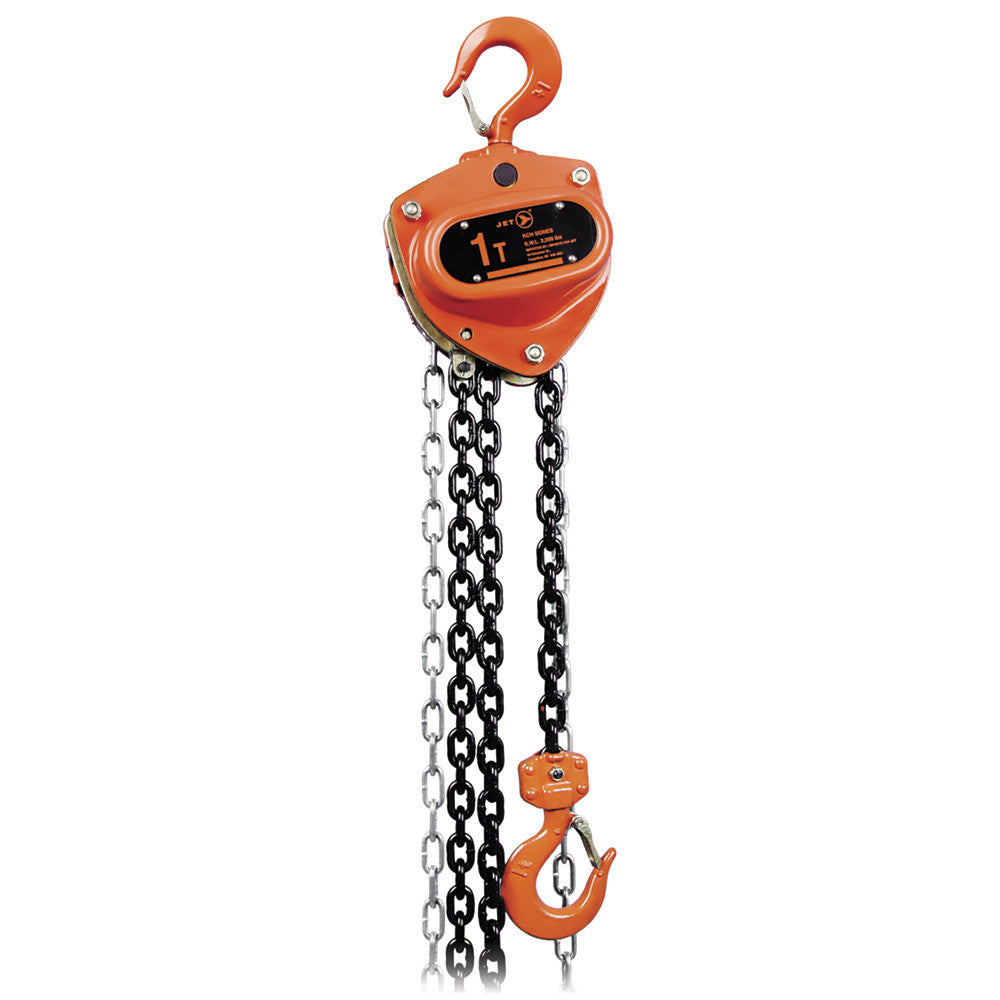

The JET Tools KCH-1020 is a heavy-duty KCH Series chain hoist with a 1-ton lifting rating and a 20' standard lift. Its triple-spur gearing supports efficient operation, while sealed, maintenance-free bearings help limit operator effort. The Weston-style braking system uses dual pawls and extra-heavy pawl springs for dependable operation. An extra-thick ratchet gear shields the brake disc against contamination, and premium-grade, non-asbestos brake discs support extended service life. Selected internal components receive a specialized corrosion-resistant finish.

• Lifting specifications: rated capacity of 1 ton (2,200 lbs), standard lift of 20', head room of 11-5/8", and one chain fall.
• Chain and operating effort: Grade 100 load chain with a 6.3mm diameter; lifting the rated capacity requires 64 lbs of force. Raising a load by 1 ft requires pulling 43' of hand chain.
• Hook protection: safety hooks at both ends deform gradually as an overload warning. The cast hook latches surpass industry standards.
• Testing and manufacturing: tested under a load equal to 150% of rated capacity, with a certificate included. Meets ASME B30.16; manufactured in an ISO 9001-2000 certified factory.
• Dimensional references: H = 11-5/8"; G = 45mm; F = 40mm; E = 33mm; D = 1-1/8"; C = 2"; B = 6-5/16"; A = 6-5/16".
• Product weight: 39.732 lb (18.06 kg). Shipping weight: 40.7 lb (18.5 kg). Manufacturer part number: KCH-1020; catalogue SKU: SUW-101116.
