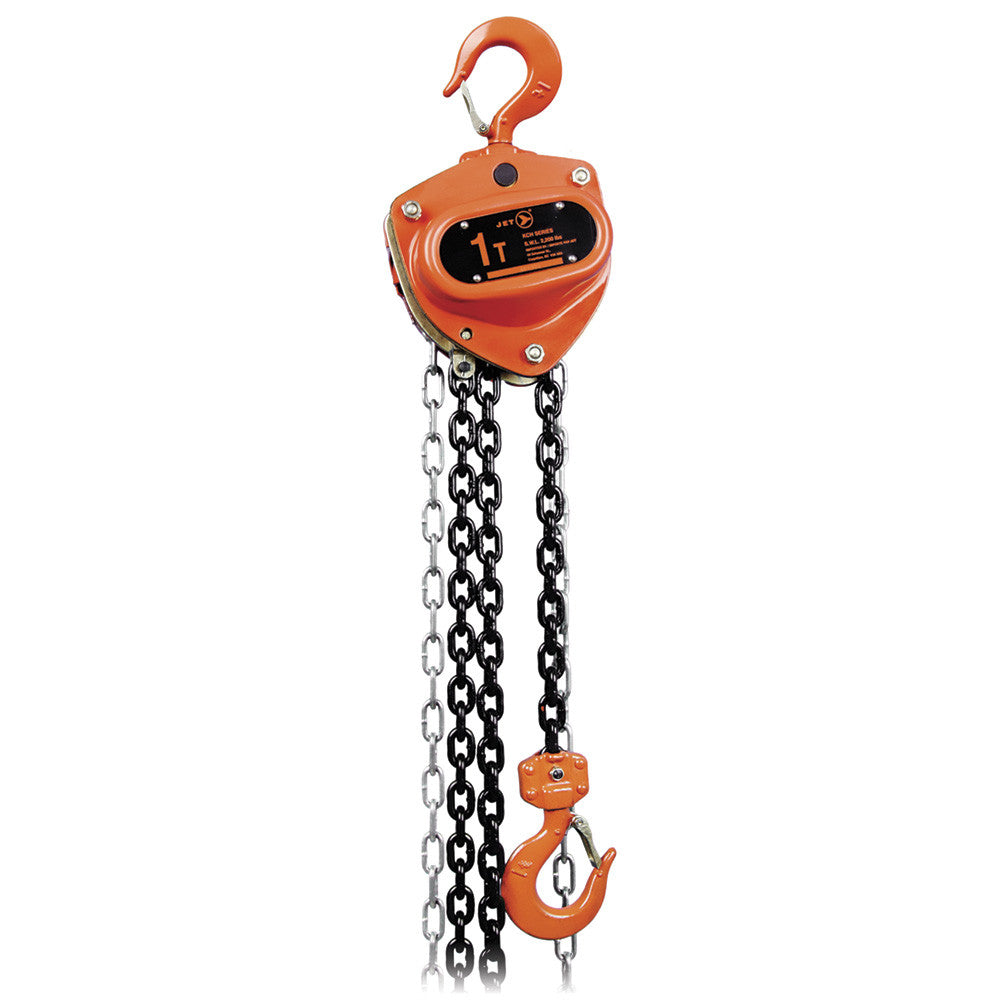

The JET Tools KCH-1020L is a heavy-duty KCH Series chain hoist rated for 1 ton (2,200 lbs), with a standard lift of 20'. Its factory-set overload device operates automatically without operator input to prevent serious overloading. Triple spur gearing supports efficient operation, while the lifting assembly uses Grade 100 chain. Premium-grade brake discs contain no asbestos. This model has one chain fall and an 11-5/8" head room. Product reference: SUW-101316.

• Lifting specifications: Capacity is 1 ton (2,200 lbs); standard lift is 20'; load chain diameter is 6.3 mm.
• Operating effort: Lifting the rated capacity requires 64 lbs of force. Raising the load by 1 ft requires pulling 43' of hand chain.
• Overload protection: The automatic device is factory preset and requires no action from the operator.
• Testing and manufacture: Supplied with a certificate documenting load testing at 150% of rated capacity. Meets ASME B30.16 standards and is manufactured in an ISO 9001-2000 certified factory.
• Shipping weight: 40.7 lb (18.5 kg).
• Dimension references: H: 11-5/8"; G: 45 mm; F: 40 mm; E: 33 mm; D: 1-1/8"; C: 2"; B: 6-5/16"; A: 6-5/16".
