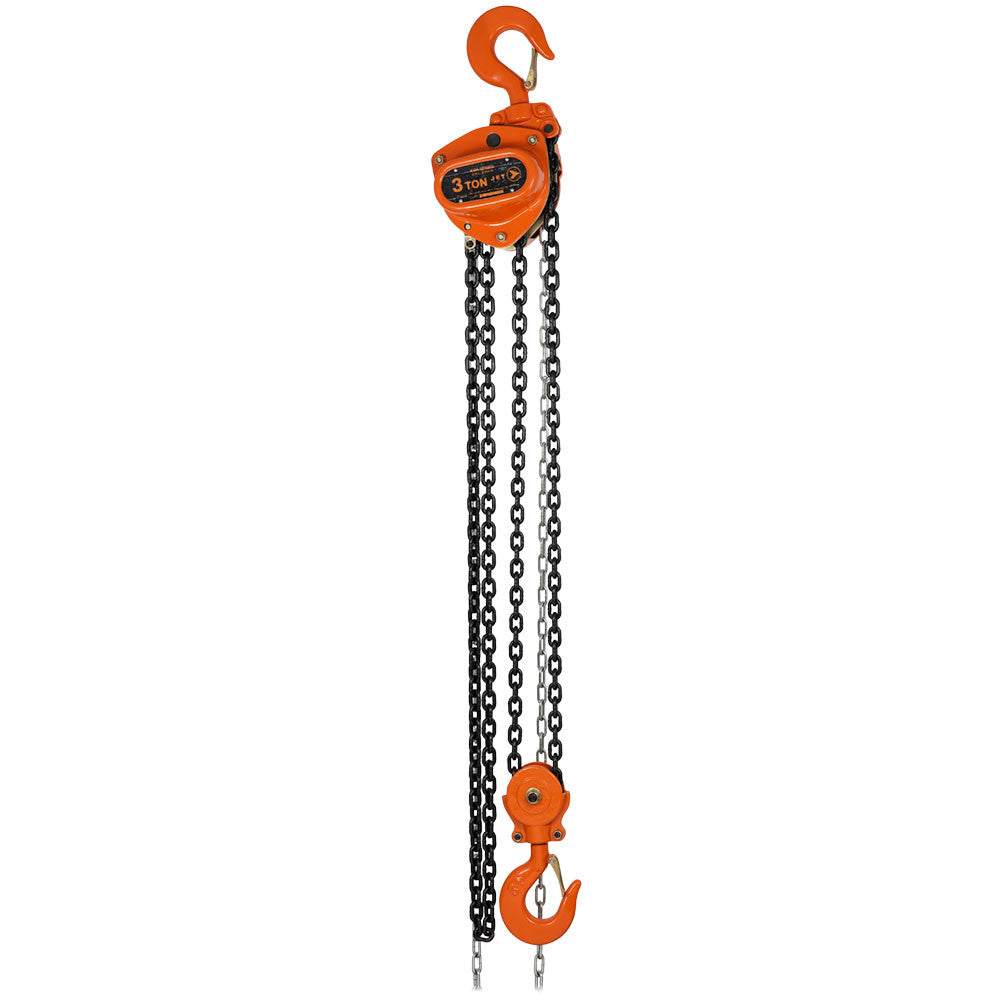

The JET Tools KCH-3010 is a heavy-duty KCH Series chain hoist for lifting loads up to 3 tons through a standard 10' lift. Its triple-spur gearing supports efficient operation, while sealed, maintenance-free bearings help limit operator effort. Weston-style braking uses two pawls and extra-heavy springs, with an extra-thick ratchet gear shielding the brake disc against contamination. Premium-grade brake discs contain no asbestos and are designed for extended service life. Selected internal components have a specialized finish to improve corrosion resistance.

• Lifting specifications: rated capacity of 3 tons (6,600 lbs), standard lift of 10', and 20" headroom. Hand-chain pull requires 79 lbs of force at rated capacity; raising the load 1 ft requires 114' of hand-chain travel.
• Chain configuration: two falls, with a 7.1mm-diameter load chain rated Grade 100 for increased strength.
• Hook protection: upper and lower safety hooks deform gradually to signal an overload. Cast safety latches surpass industry standards.
• Testing and manufacture: tested at 150% of rated capacity, with a certificate included. Meets ASME B30.16; manufactured in an ISO 9001-2000 certified factory.
• Dimension references: H = 20"; G = 62.5mm; F = 52mm; E = 43.5mm; D = 2-1/16"; C = 4-1/8"; B = 9-1/4"; A = 6-5/8".
• Identification and weights: manufacturer part number KCH-3010; SKU SUW-101142. Product weight is 52.668 lb (23.94 kg), and shipping weight is 53.7 lb (24.4 kg).
