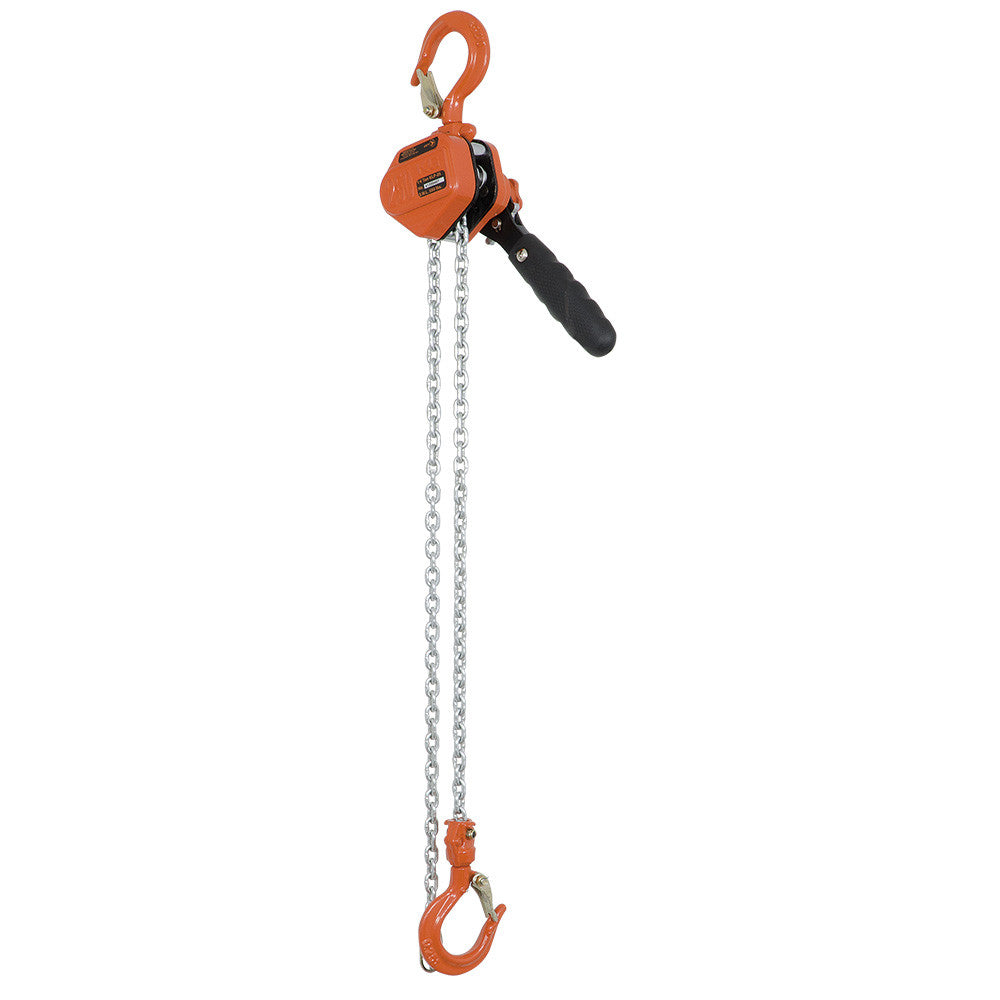

The JET Tools KLP-25-5 is a KLP Series lever chain hoist built for heavy-duty lifting, with a 1/4 Ton rating and a standard 5' lift. Its impact-resistant gear housing and brake cover protect the working components, while Grade 100 chain provides increased strength. Ball bearings support smooth sprocket movement, and the braking system combines dual pawls with extra-heavy springs. Hook deformation indicators provide measurable reference points for maintenance checks.

• Lifting specifications: 1/4 Ton rated capacity, 5' standard lift, one chain fall and 3.2mm load-chain diameter. Raising the rated load requires 44 lbs of force.
• Working dimensions: 7.87" minimum hook spacing and a 5.70" lever. Reference dimensions: E = .83"; D = 3.43"; C = 2.68"; B = 5.70"; A = 7.87".
• Heavy-duty construction includes an impact-resistant gear case and brake cover, Grade 100 load chain, and caged ball bearings supporting the load sprocket.
• A Weston-style brake uses two pawls and extra-heavy pawl springs for dependable braking. Premium-grade, non-asbestos brake discs support extended service life.
• Both upper and lower safety hooks bend as an overload warning. Hook deformation indicators aid measurement during maintenance, and cast steel safety latches exceed industry-standard requirements.
• Tested at 150% of rated capacity, with a certificate included. Meets ASME B30.21 standards and is manufactured in an ISO 9001-2008 certified factory. MPN: KLP-25-5; SKU: SUW-110803.
