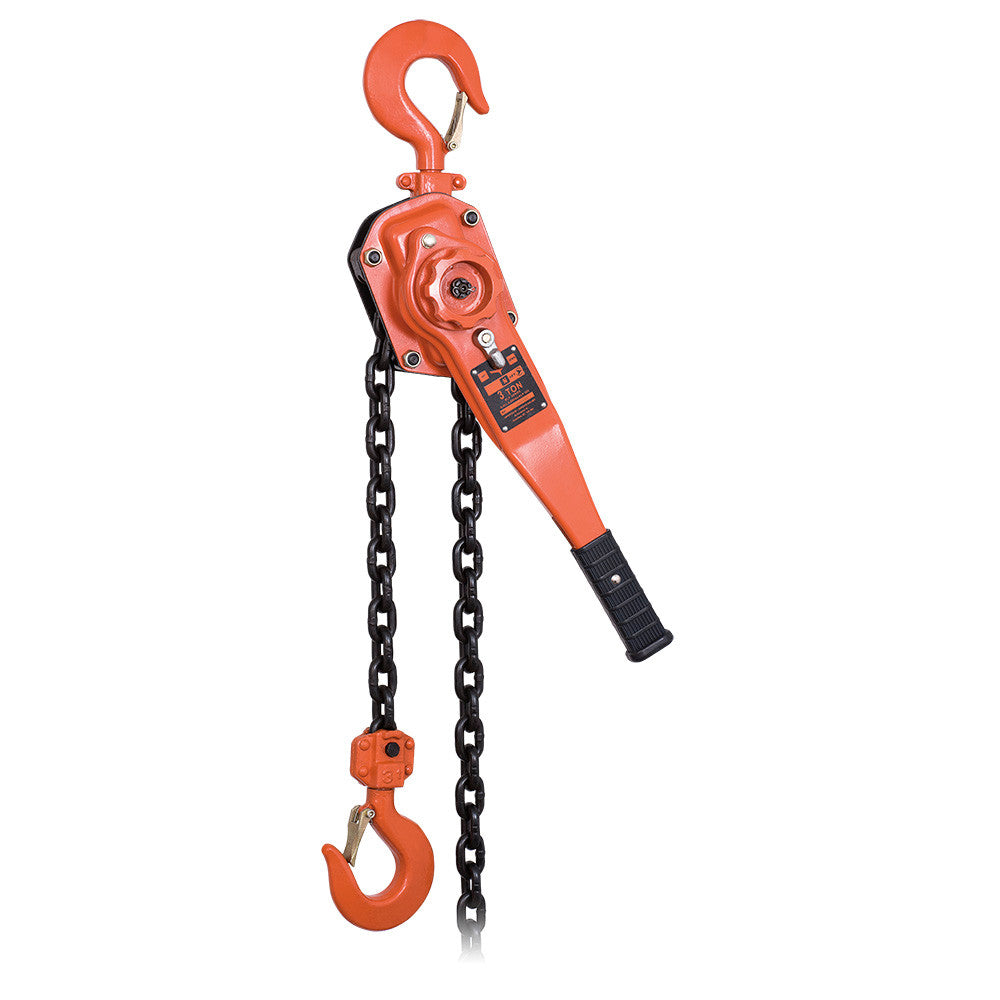

The JET Tools KLP-300-5 is a heavy-duty lever chain hoist with a rated lifting capacity of 3 tons and a standard lift of 5'. Its Grade 100 load chain works with a load sprocket supported by caged ball bearings. A gear case and brake cover built to withstand high impact protect the mechanism, while hook deformation indicators provide measurement references for maintenance. The Weston-style braking system uses two pawls with extra-heavy springs.

• Lifting specifications: 1 fall, 10.0mm load chain diameter, 68 lbs of force required at rated capacity, and a 16-1/4" lever.
• Braking components include premium-grade discs made without asbestos, plus a dual-pawl Weston-style brake.
• Both safety hooks are designed to bend as an overload warning. Hook latches are cast steel, and deformation indicators support maintenance measurements.
• Tested at 150% of rated lifting capacity; a load-test certificate is included. Meets ASME B30.21 and is manufactured in an ISO 9001-2008 certified factory.
• Product weight: 39.688 lb (18.04 kg). Shipping weight: 39.7 lb (18 kg). MPN: KLP-300-5; catalogue SKU: SUW-110404.
• Minimum hook spacing: 16-1/2". Dimensional references: H = 16-1/2"; G = 43.5mm; D = 16-1/4"; C = 62.5mm; B = 4-1/2"; A = 7-11/16".
