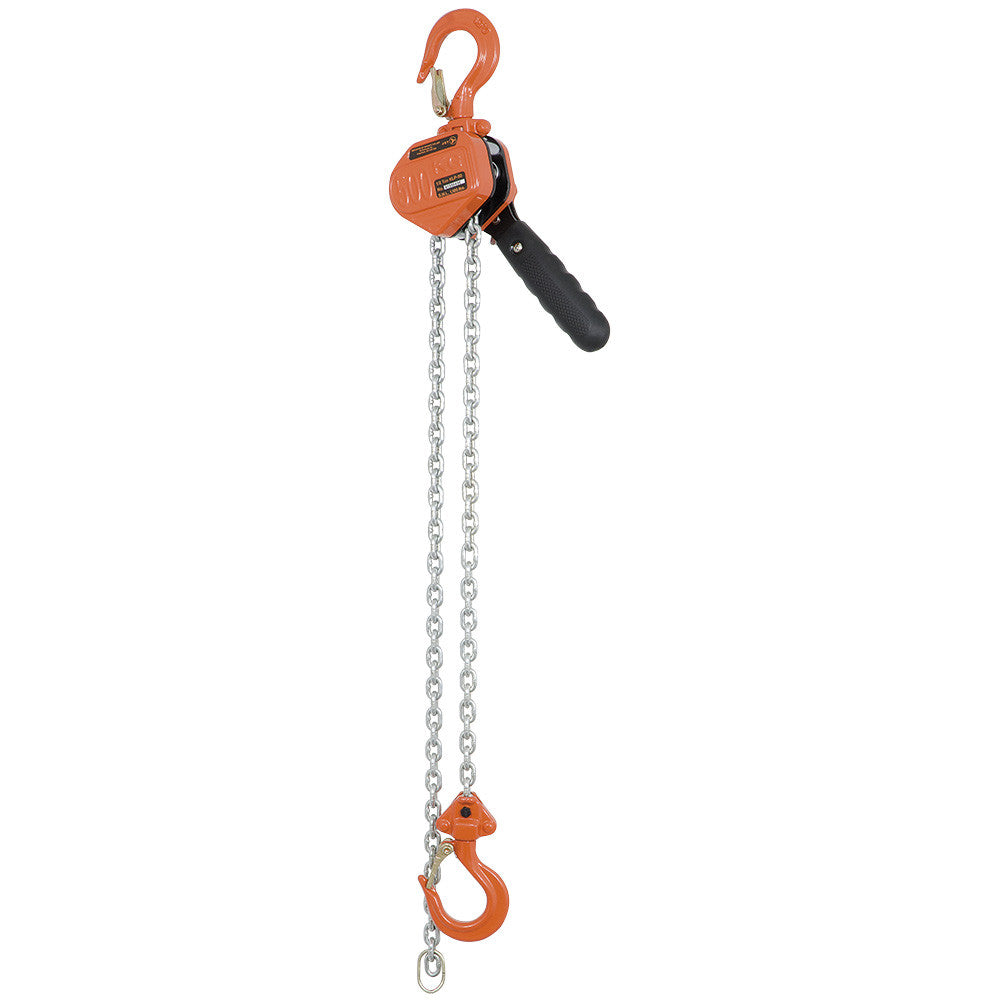

The JET Tools KLP-50-5 is a KLP Series lever chain hoist built for heavy-duty lifting, with a 1/2-ton rating and 5' standard lift. Its gear housing and brake cover resist high impact, while Grade 100 chain provides added strength. Ball bearings housed in a cage support the load sprocket for smooth operation. The Weston-style braking system uses two pawls, extra-heavy springs and premium non-asbestos discs designed for long service life.

• Lifting specifications: 1/2-ton capacity, 5' lift, one chain fall and a 4.3mm load chain diameter. Lifting the rated load requires 52.80 lbs of force.
• Hook features: upper and lower safety hooks deform by bending to signal overload; indicators support precise deformation checks during maintenance. Cast-steel hook latches surpass industry standards.
• Test documentation: supplied with a certificate confirming load testing at 150% of rated capacity. Meets ASME B30.21; manufactured in an ISO 9001-2008 certified factory.
• Operating dimensions: lever length is 6.30"; minimum hook-to-hook distance is 9.84".
• Drawing dimensions: E = .96"; D = 3.96"; C = 3.19"; B = 6.30"; A = 9.84".
• Product identifiers: manufacturer part number KLP-50-5; SKU SUW-110804. Shipping weight value: 5.95, with no unit specified.
