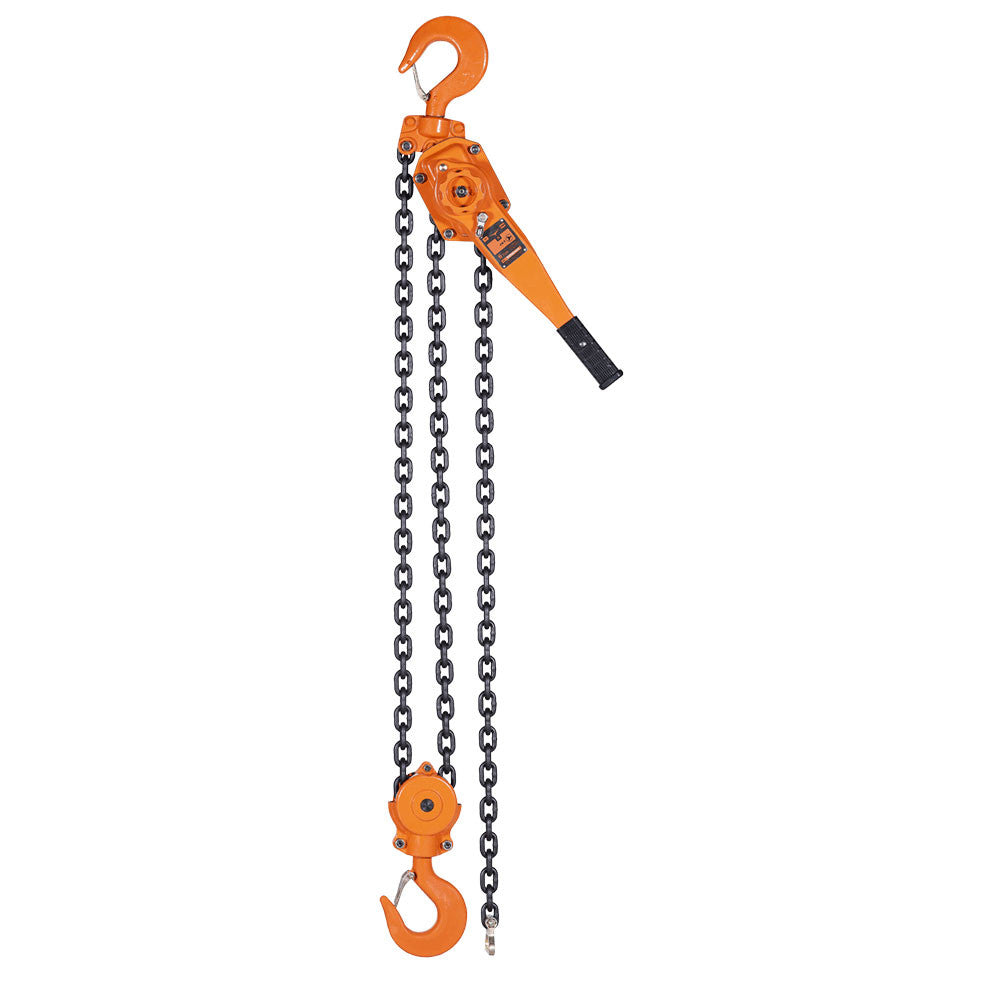

The JET Tools KLP-600-5 is a KLP Series lever chain hoist built for heavy-duty lifting, with a 6 ton rating and a standard lift of 5'. Its gear housing and brake cover resist high impacts, while caged ball bearings support the load sprocket for smooth operation. The braking assembly uses a dual-pawl Weston-style design, extra-heavy pawl springs and premium non-asbestos discs. Hook deformation indicators provide measurable reference points for maintenance checks.

• Lifting specifications: 6 ton capacity, 5' standard lift, 2 falls and 81 lbs of force required to lift the rated capacity.
• Chain specification: Grade 100, with a diameter of 10.0mm.
• Upper and lower safety hooks are designed to bend as an overload warning. Their cast steel safety latches surpass industry standards.
• Each hoist is tested at 150% of its rated capacity and supplied with a load-test certificate. It meets ASME B30.21; the manufacturing factory is ISO 9001-2008 certified.
• Product weight: 59.5 lb (26.99 kg). Shipping weight: 61 lb (27.7 kg).
• Manufacturer part number: KLP-600-5. Product reference: SUW-110405.

Dimensional references: H measures 22-7/16"; D measures 16-1/4"; C measures 78mm; B measures 4-1/2"; A measures 7-11/16".
