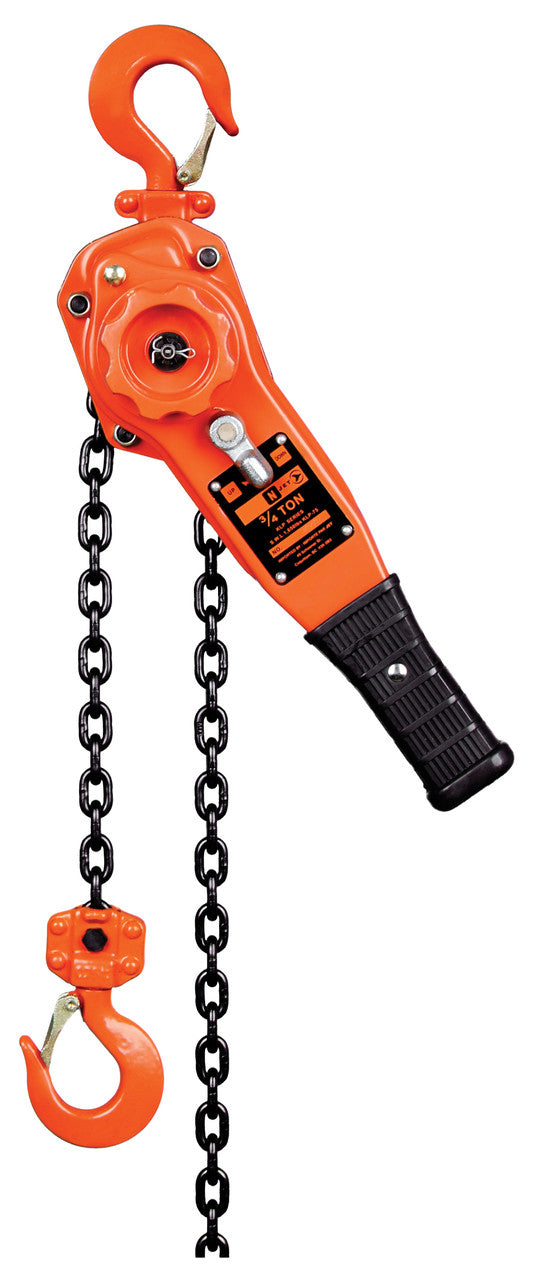

The JET Tools KLP-75-5 is a heavy-duty lever chain hoist with a rated lifting capacity of 3/4 ton and a standard lift of 5'. Its impact-resistant gear housing and brake cover are built for demanding service. Each hoist undergoes load testing at 150% of its rated capacity, with a certificate included. It meets ASME B30.21 standards and is manufactured in an ISO 9001-2008 certified factory. Product reference: SUW-110402.

• Grade 100 chain provides increased strength. The single-fall arrangement uses a 5.6mm load chain, while caged ball bearings support smooth load-sprocket movement.
• The Weston-style brake uses two pawls with extra-heavy springs for dependable braking. Premium-grade brake discs contain no asbestos and are designed for extended service life.
• Both safety hooks are designed to bend as an overload warning. Hook deformation indicators support maintenance measurements, and the cast steel safety latches surpass industry standards.
• Lifting the rated load requires 42 lbs of force. Lever length is 10-1/2", and the minimum hook-to-hook distance is 11".
• Dimensional references: H = 11"; G = 28mm; D = 10-1/2"; C = 37.5mm; B = 3-1/2"; A = 5-13/16".
• MPN: KLP-75-5. Product weight: 13.2 lb (6 kg). Shipping weight: 14 lb (6.4 kg).
