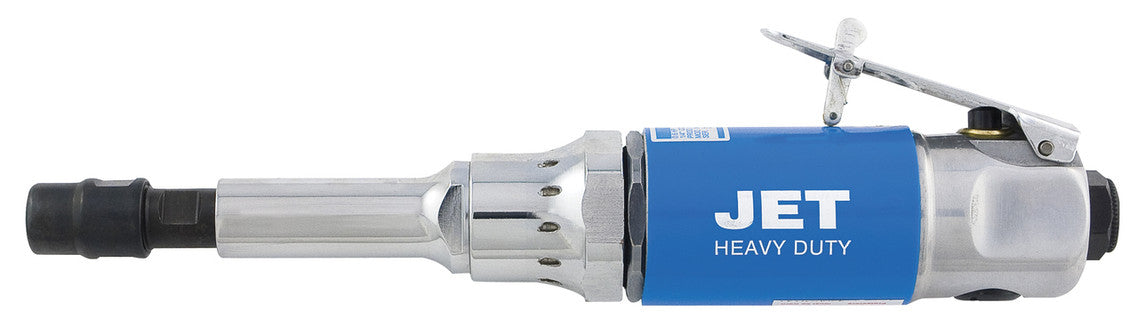

The JET Tools MG3HDE SUW-402121 is a pneumatic die grinder intended for heavy duty industrial work. Its .6 HP motor sits in a compact housing with front-directed exhaust, while a 3" shaft provides the extended configuration. A vibration-absorbing coupling nut joins the shaft and motor and allows disassembly for repairs. The shaft has a polished chrome finish, and an insulating vinyl cover supports operator comfort and safety. A roller-tipped throttle lever controls operation, while an inlet screen helps keep air-line debris out of the motor.

• Motor construction: ball bearings support both ends of the motor shaft; die-cast aluminum end plates provide durability. The coupler contains an additional ball bearing.
• Extended shaft: solid bar stock construction with three precision ball bearings and an internally machined, polished housing designed to limit run-out and support smooth, accurate operation.
• Operating specifications: .6 HP output, 1/4" collet and 20,000 RPM free speed; recommended air pressure is 90 PSI for maximum performance.
• Air requirements: average consumption of 5.1 cfm, minimum hose size of 3/8" and 1/4" NPT air inlet.
• Dimensions and operating measurements: 9-3/4" overall length; weight of 1.89 lb (0.85 kg); sound pressure of 88 dBA; vibration of 2.2 m/s².
• Included accessories: wrenches. Model MG3HDE; SKU SUW-402121; product number 402121.
