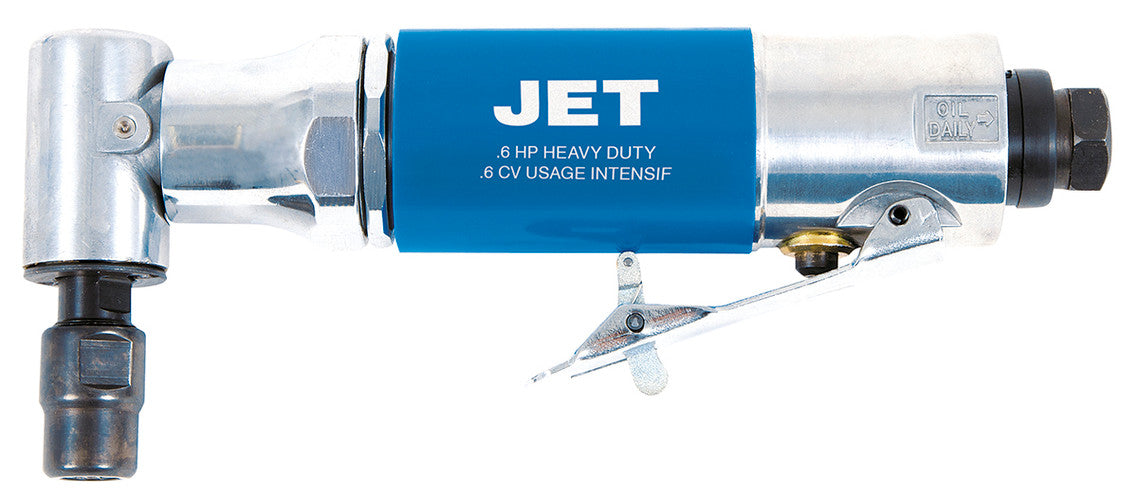

The JET Tools MG90HD is a heavy duty die grinder with a 90° angle head and a .6 HP motor, intended for heavy duty industrial applications. Its compact housing incorporates rear exhaust, while an improved drive gear system supports longer service life under demanding use. Ball bearings support both ends of the motor shaft, and die cast aluminum motor end plates provide durability. A vinyl insulating cover adds operator comfort and safety. The throttle lever uses a roller tip for easier operation, and an inlet screen captures debris from the air line to help extend motor life.

• Identification: model MG90HD; SKU SUW-402113; product number 402113.
• Collet: 1/4"; free-running speed: 14,500 RPM.
• Dimensions and weight: 7-1/2" overall length; 2 lb (0.9 kg).
• Air requirements: 90 PSI recommended for maximum performance; average consumption of 5 cfm.
• Connections: 1/4" NPT air inlet; minimum hose size of 3/8".
• Sound pressure: 95 dBA; vibration: 2.0 m/s².
