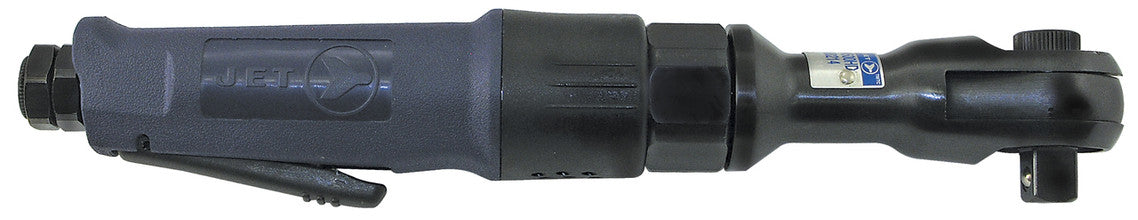

The JET Tools RW500HD is a heavy-duty, air-powered ratchet wrench with a 1/2" square drive and a five-blade motor delivering 70 ft/lbs of torque. Its slender ratchet head combines a low profile with an extended neck to reach confined work spaces. A rubber-covered ergonomic handle provides insulation and vibration absorption, while the recessed throttle supports a comfortable grip. The air inlet rotates through 360° to reduce hose twisting, and the independently swivelling 360° outlet lets the operator redirect exhaust.

• Identification: model RW500HD; SKU SUW-400214; product number 400214.
• Torque and speed: maximum air torque 70 ft/lbs; maximum hand torque 120 ft/lbs; free-running speed 160 RPM.
• Dimensions and capacity: 11-3/4" overall length; 2.8 lb (1.26 kg) weight; 1/2" square drive; standard bolt capacity 3/8".
• Air requirements: average consumption 2.6 CFM; minimum hose size 3/8"; 1/4" NPT air inlet.
• Measured output: sound pressure 90.8 dBA; vibration 1.93 m/s².
• The roll-forged pawl receives special heat treatment to reduce spreading and support a longer service life.
