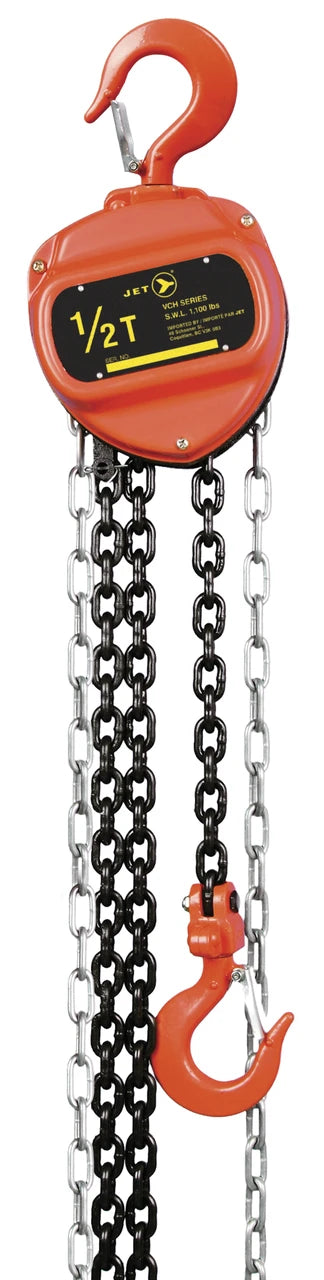

The JET Tools VCH-0510 is a VCH Series chain hoist with a rated capacity of 1/2 ton (1,100 lbs) and a standard lift of 10'. Its single-fall configuration uses Grade 80 chain with a 6.0mm diameter. Triple spur gearing and roller bearings made from hardened steel assist operation, while a Weston-style braking system uses dual pawls and premium-grade brake discs made without asbestos.

• Load-sheave support comes from hardened steel roller bearings. The non-asbestos brake discs are designed for extended service life.
• Safety hooks at both ends gradually bend under overload, providing a warning. Each hoist is tested at 150% of its rated capacity and includes a test certificate.
• Meets ASME B30.16; manufactured in a factory certified to ISO 9001-2000.
• Lifting the rated load requires 49 lbs of force. Raising a load by 1 ft requires pulling 27' of hand chain.
• Head room: 11-1/32". Reference dimensions: H = 11-1/32"; G = 27mm; C = 35mm; B = 4-13/16"; A = 4-15/16".
• Product weight: 19.756 lb (8.98 kg). Shipping weight: 20.3 lb (9.2 kg). Manufacturer part number: VCH-0510; catalogue SKU: SUW-101002.
