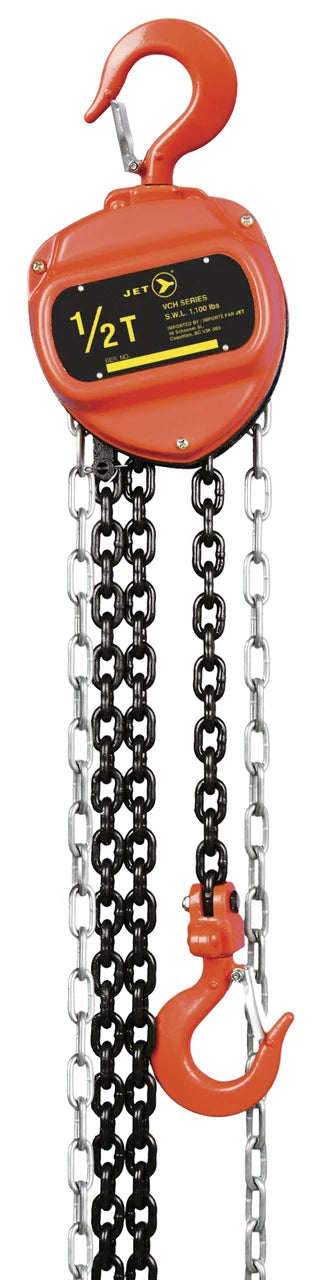

The JET Tools VCH-0520 is a VCH Series chain hoist for lifting loads up to 1/2 ton through a 20' lift. Its triple-spur gearing works with a load sheave carried on hardened-steel roller bearings. Braking combines a Weston-style mechanism, two pawls and premium-grade discs made without asbestos. Grade 80 chain carries the load, while safety hooks at both ends deform gradually under overload, providing a warning through their changing shape.

• Lifting rating: 1/2 ton (1,100 lbs); standard lift: 20'; one chain fall; headroom: 11-1/32".
• Load chain: Grade 80, with a diameter of 6.0mm.
• Required force at rated capacity: 49 lbs. Raising the load 1 ft requires pulling 27' of hand chain.
• Product weight: 30.8 lb (14 kg). Shipping weight: 31.5 lb (14.3 kg).
• Dimension references: G = 27mm; C = 35mm; B = 4-13/16"; A = 4-15/16"; H = 11-1/32".
• Includes a certificate documenting testing at 150% of rated capacity. Meets ASME B30.16; manufactured in an ISO 9001-2000 certified factory.
