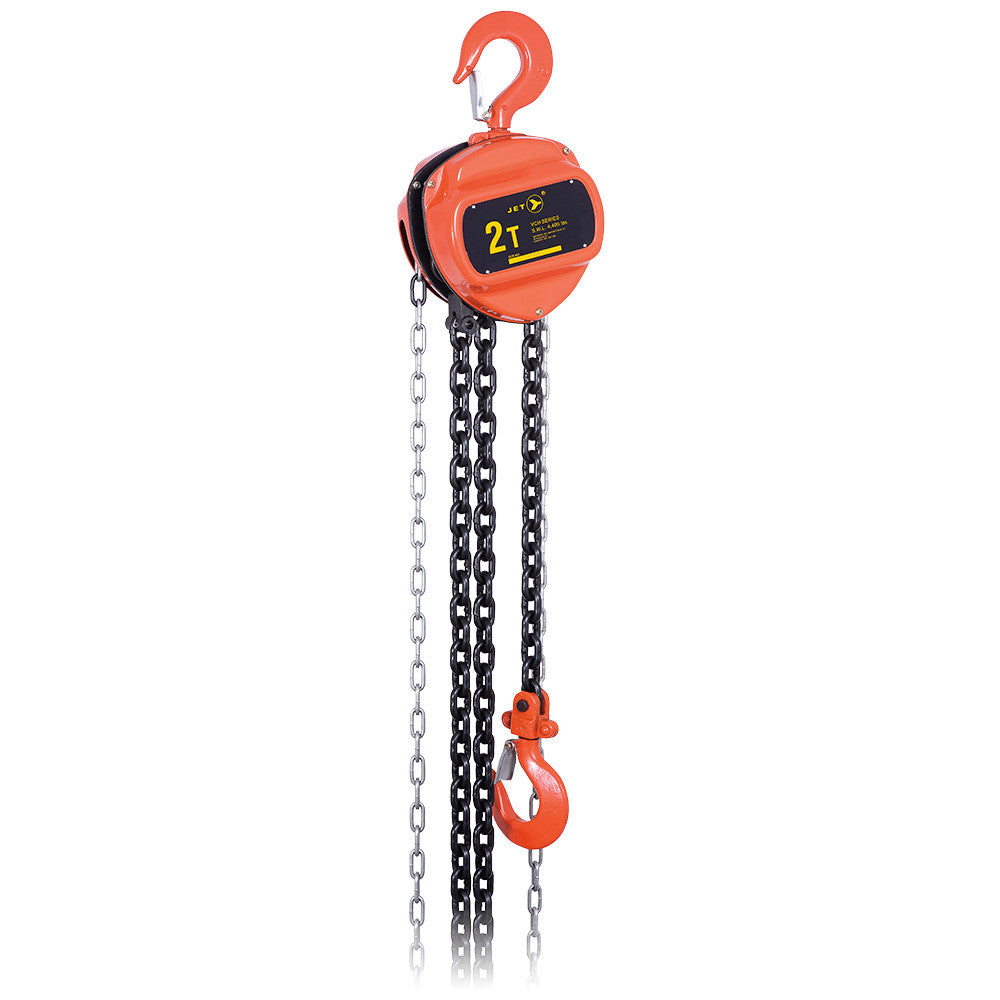

The JET Tools VCH-2020 is a VCH Series chain hoist with a 2 TON lifting rating and a 20' standard lift. Its triple-spur gearing works with hardened steel roller bearings that support the load sheave. Braking is handled by a Weston-style mechanism with dual pawls and premium-grade, non-asbestos discs. Grade 80 chain carries the load, while safety hooks at both ends are designed to bend gradually as an overload warning.

• Lifting specifications: rated capacity of 2 tons (4,400 lbs), 20' standard lift and 17-1/2" head room.
• Chain specifications: one fall and an 8.0mm load chain diameter. Lifting at rated capacity requires 102 lbs of force; raising the load 1 ft requires pulling 70' of hand chain.
• Each hoist is tested at 150% of its rated capacity and includes a load-test certificate.
• Meets ASME B30.16 standards; manufactured in an ISO 9001-2000 certified factory.
• Product weight: 54.692 lb (24.86 kg). Shipping weight: 55.7 lb (25.3 kg).
• Model/MPN: VCH-2020. Catalogue SKU: SUW-101036.
