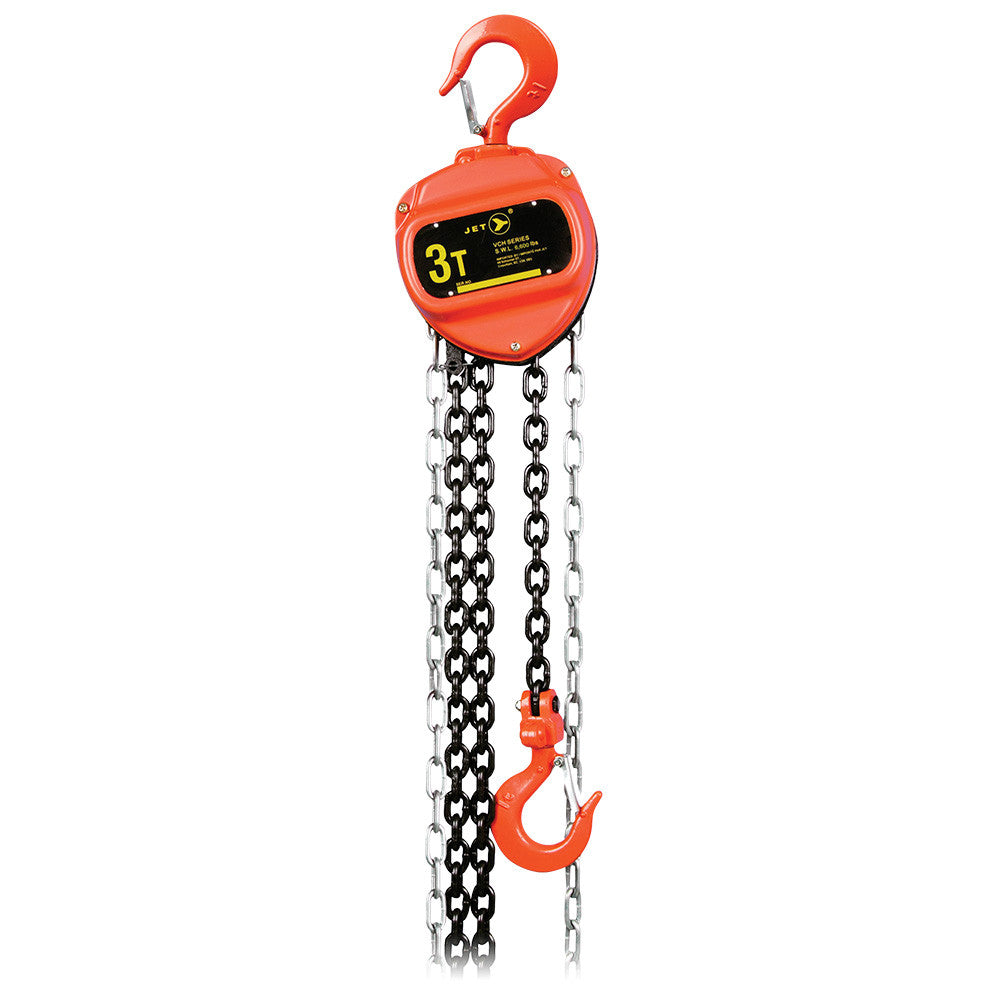

The JET Tools VCH-3010 is a portable chain hoist for industrial lifting and pulling work, with a 3-ton capacity and 10' standard lift. Its triple spur gearing provides a lightweight drive arrangement, while a Weston-style brake with dual pawls controls operation. Heat-treated grade 80 alloy steel forms the load chain. Finished in hi-viz safety orange, this hoist includes a certificate documenting load testing at 150% of its rated capacity.

• Lifting specifications: rated for 3 tons (6,600 lbs), with a 10' standard lift, two falls and an 8.0 mm load chain diameter.
• Brake and hooks: premium non-asbestos brake discs support extended service life; the top and bottom safety hooks are designed to bend if accidental overload occurs.
• Operating effort: lifting the rated load requires 88 lbs of force. Raising a load by 1 ft requires pulling 53' of hand chain.
• Clearance and dimensions: head room is 20-15/32"; dimension H is 20-15/32"; dimension G is 1-23/32"; dimension C is 2-29/64"; dimension B is 6-7/32"; dimension A is 7-13/64".
• Weights: product weight is 52.9 lb (24.1 kg); shipping weight is 54.7 lb (24.8 kg).
• Product identifiers: JET Tools model VCH-3010; SKU SUW-101042.
