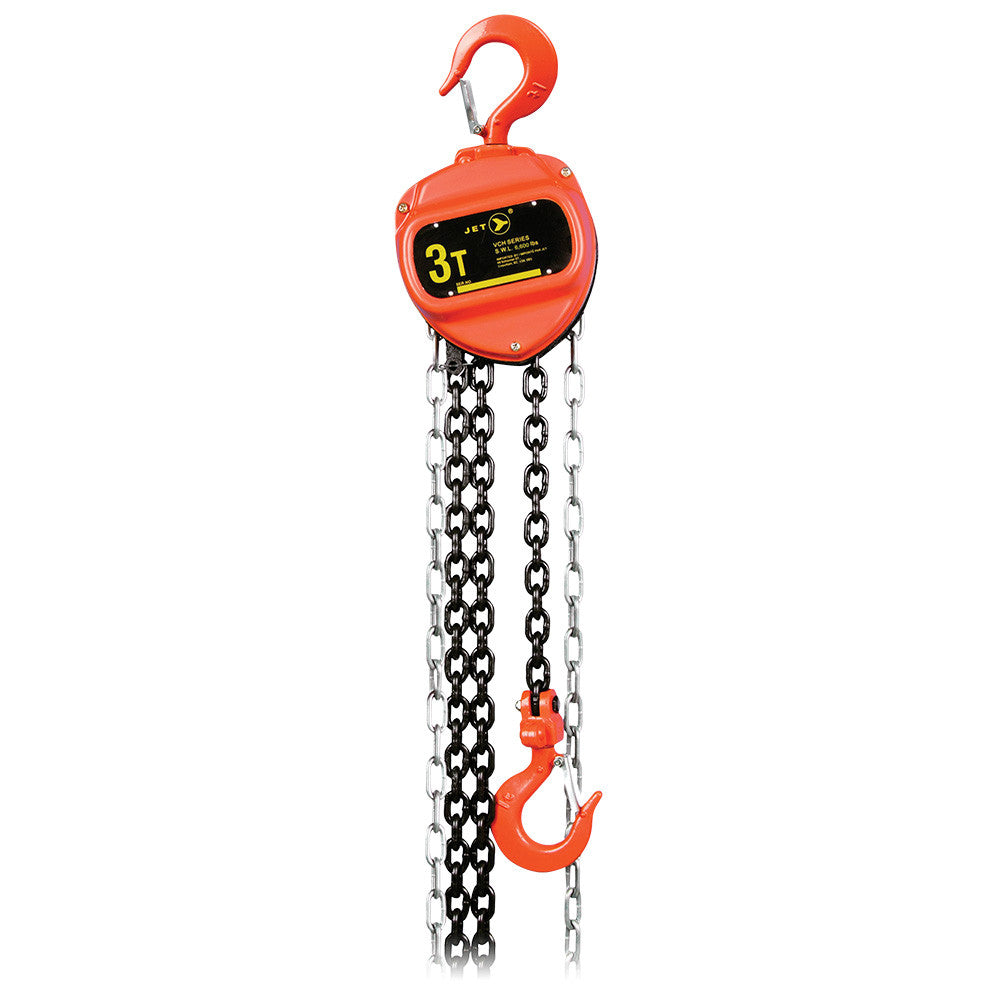

The JET Tools VCH-3020 is a VCH Series chain hoist for industrial pulling and lifting tasks, with a 3-ton rating and 20' standard lift. Its lightweight triple spur gear design supports portability, while a dual pawl Weston-style brake controls operation. Non-asbestos brake discs are selected for extended service life. The hoist has a hi-viz safety orange finish and safety hooks at both ends that are designed to bend if accidentally overloaded.

• Lifting rating: 3 tons (6,600 lbs). Each hoist is tested at 150% of its rated capacity and supplied with a certificate.
• Lift configuration: 20' standard lift, 2 falls and 20-15/32" head room.
• Load chain: heat-treated grade 80 alloy steel, with an 8.0 mm diameter.
• Operating effort: 88 lbs of force to lift the rated capacity; raising the load 1 ft requires 53' of hand-chain travel.
• Brake and gearing: dual pawl Weston-style brake, premium-grade non-asbestos discs and professional-grade triple spur gear.
• Product weight: 77.2 lb (35.1 kg). Shipping weight: 79 lb (35.8 kg).

Dimensional references: H — 20-15/32"; C — 2-29/64"; A — 7-13/64"; G — 1-23/32"; B — 6-7/32". Manufacturer part number: VCH-3020. Catalogue SKU: SUW-101046.
