product description

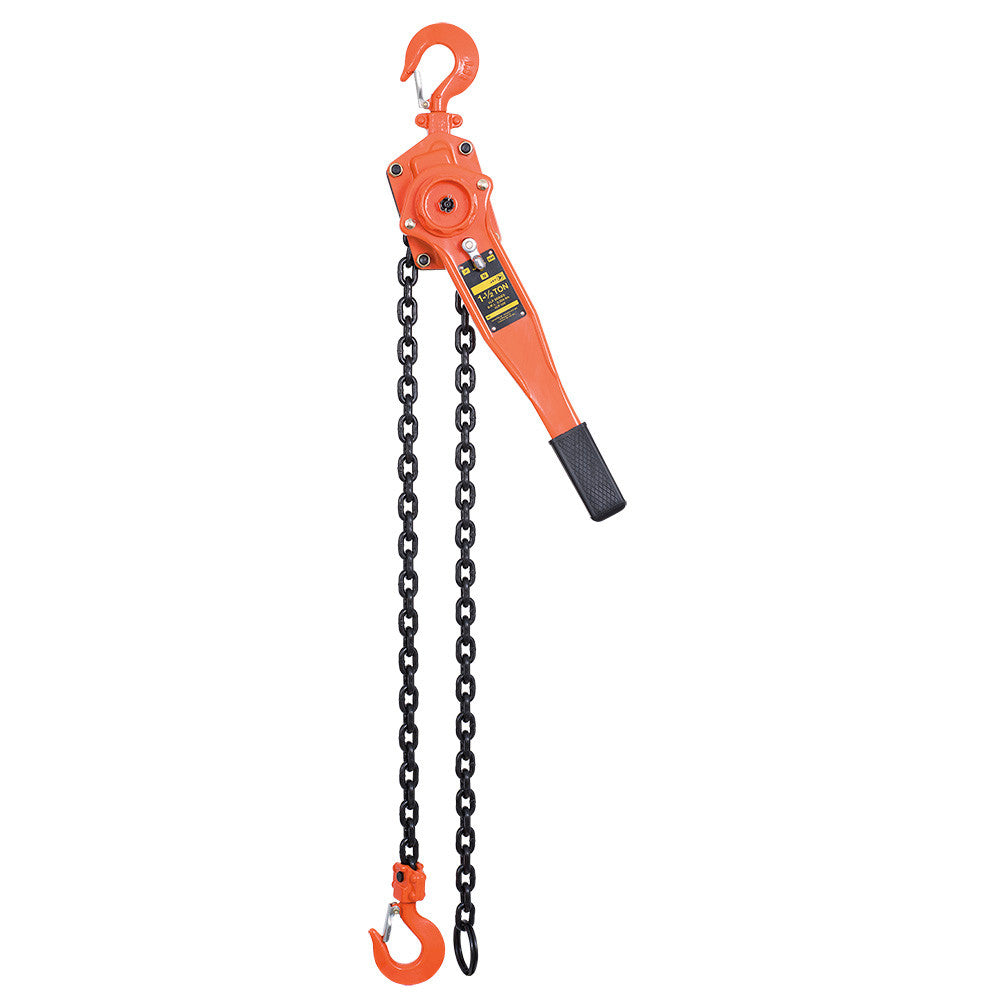

The JET Tools VLP-150-10 VLP Series lever chain hoist provides a rated lifting capacity of 1-1/2 tons with a standard 10' lift. Its housing uses stamped steel formed cold for impact resistance, while hardened steel roller bearings carry the load to reduce operating effort. Grade 80 chain handles the load, and premium non-asbestos brake discs are designed for extended service life. A dual-pawl, Weston-style brake provides dependable braking for safe operation.
- Both safety hooks, upper and lower, are designed to bend under overload conditions as a warning.
- Hook deformation indicators provide measurable reference points for maintenance checks.
- Each hoist undergoes testing at 150% of its rated load capacity and includes a certificate.
- Conforms to ASME B30.21; manufactured in an ISO 9001-2000 certified factory.
- Single-fall configuration with an 8.0 mm load chain.
- Lifting the rated load requires 48 lbs of force at the 16-1/2" lever.
| Manufacturer part number | VLP-150-10 |
|---|---|
| SKU | SUW-110307 |
| Rated capacity | 1-1/2 tons |
| Standard lift | 10' |
| Minimum hook spacing | 15" |
| Product weight | 28.7 lb (13.3 kg) |
| Shipping weight | 30.4 lb (13.6 kg) |
| Dimension A | 6-3/4" |
| Dimension B | 3-7/8" |
| Dimension C | 47 mm |
| Dimension D | 16-1/2" |
| Dimension H | 15" |
