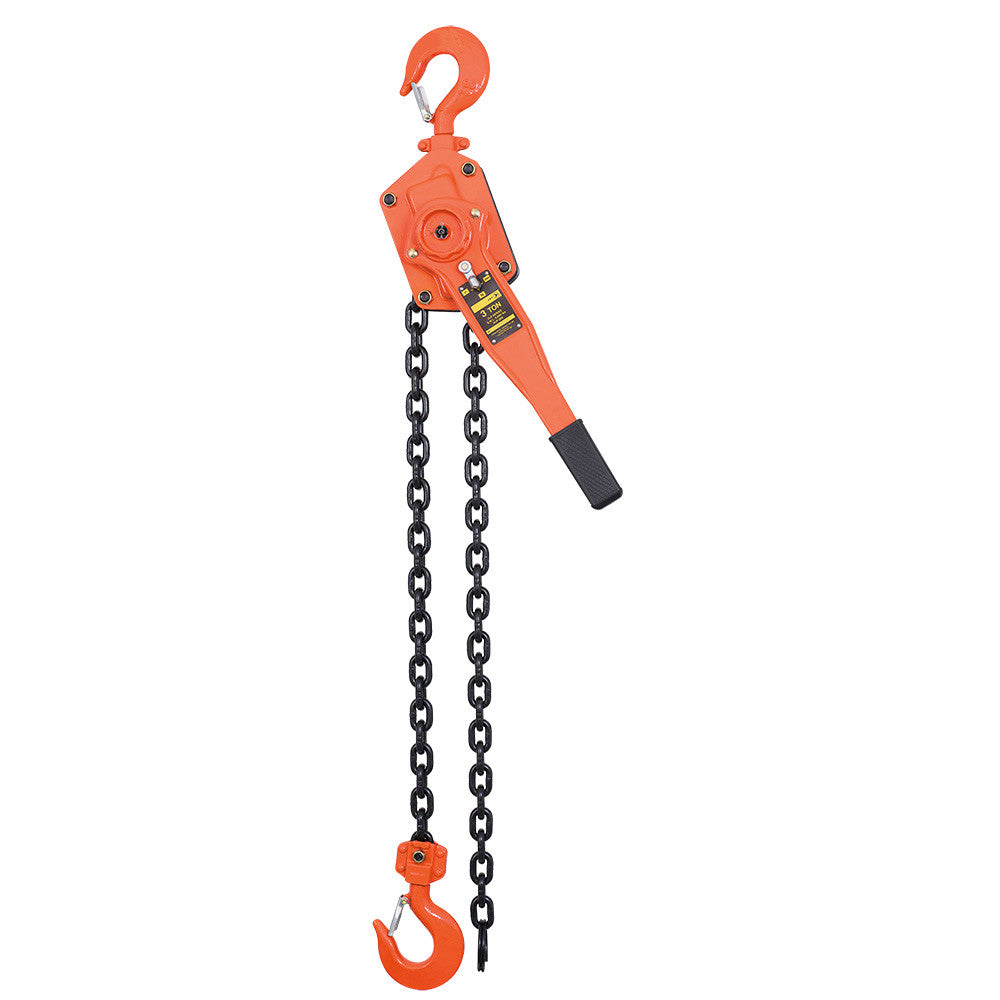

The JET Tools VLP-300-10 is a VLP Series lever chain hoist rated for 3 tons with a standard 10' lift. Its stamped steel housing is cold formed for impact resistance, while hardened steel roller bearings carry the load and help ease operation. Braking combines a Weston-style mechanism with dual pawls and premium non-asbestos discs. Both safety hooks are designed to bend under overload, and hook deformation indicators provide measurement references for maintenance checks.

• Lifting specifications: 3-ton capacity, 10' standard lift, one fall and Grade 80 load chain with a 10.0 mm diameter.
• Operation measurements: 70 lbs of force required at rated capacity; lever length of 16-1/2"; minimum distance between hooks of 118-7/8".
• Each hoist is tested at 150% of its rated load and supplied with a certificate. Meets ASME B30.21 standards.
• Manufactured in an ISO 9001-2000 certified factory. Manufacturer part number: VLP-300-10; product reference: SUW-110308.
• Drawing dimensions: H = 18-7/8"; C = 62.5 mm; A = 7-7/8"; D = 16-1/2"; B = 4-1/2".
• Product weight: 46.3 lb (21.3 kg). Shipping weight: 51.2 lb (23.1 kg).
