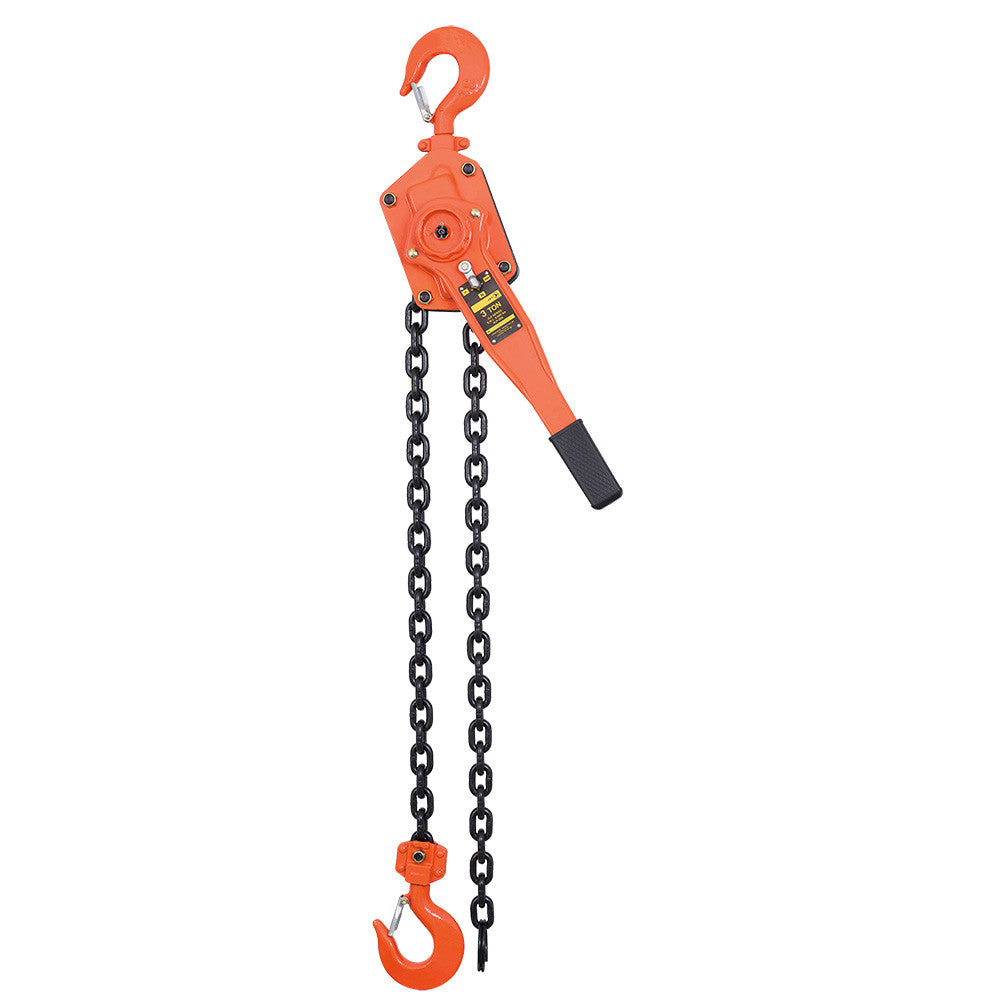

The JET Tools VLP-300 is a VLP Series lever chain hoist rated for 3 tons with a standard 5' lift. Its housing uses cold-formed, stamped steel to withstand impact, while hardened steel roller bearings carry the load and help reduce operating effort. A Weston-style brake uses dual pawls and premium-grade, non-asbestos discs. Both safety hooks are designed to bend under overload, with deformation indicators providing measurement references during maintenance.

• Lifting configuration: one fall with Grade 80 load chain measuring 10.0mm in diameter.
• Operating measurements: 70 lbs of force required at rated capacity; lever length 16-1/2"; minimum hook separation 18-7/8".
• Each hoist is tested at 150% of its rated load and supplied with a certificate. Meets ASME B30.21; manufactured in an ISO 9001-2000 certified factory.
• Product weight: 44 lb (20 kg). Shipping weight: 45.7 lb (20.8 kg).
• Dimensional references: C = 62.5mm; A = 7-7/8"; H = 18-7/8"; B = 4-1/2"; D = 16-1/2".
• Model / MPN: VLP-300. Product reference: SUW-110304.
