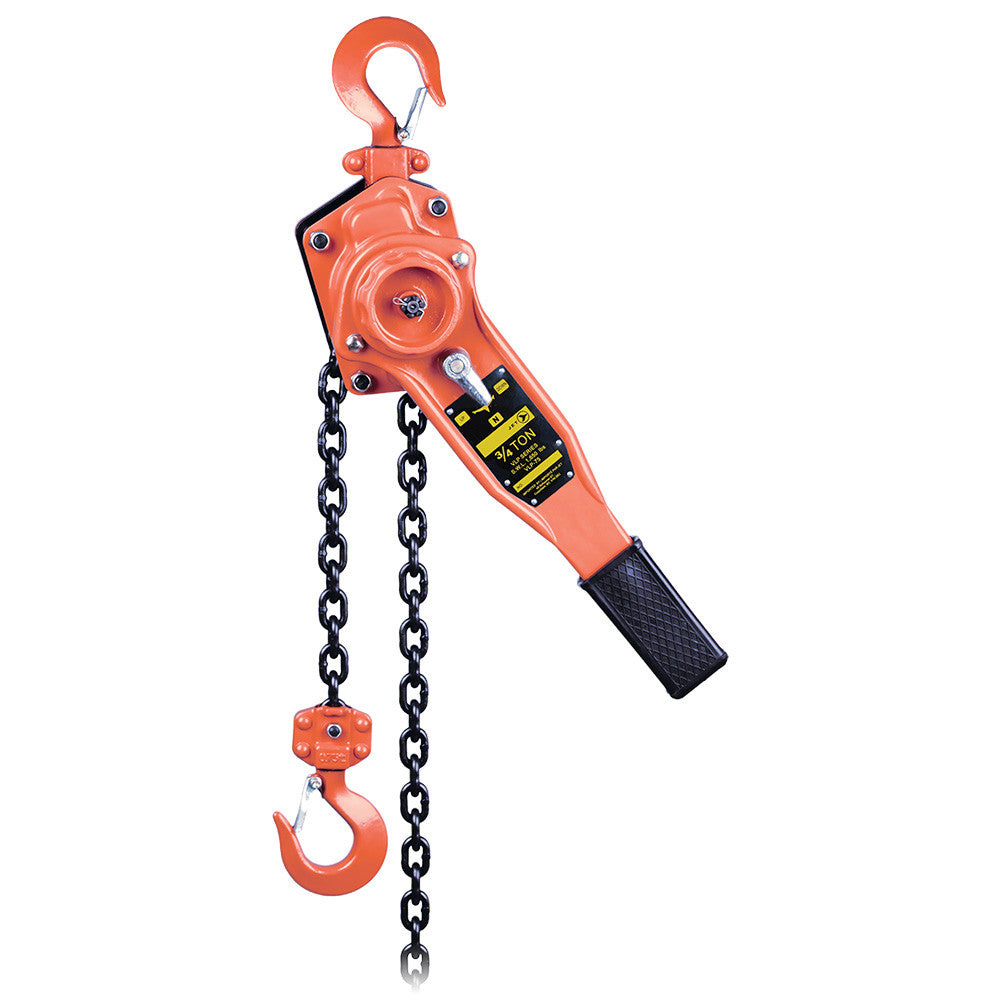

The JET Tools VLP-75-10 lever chain hoist combines a 3/4-ton lifting rating with a 10' standard lift. Its housing uses cold-formed, stamped steel for impact resistance, while hardened steel roller bearings carry the load to ease operation. Braking is handled by a Weston-style mechanism with dual pawls and premium-grade discs made without asbestos. Both safety hooks are designed to bend under overload, providing a visible warning; hook deformation indicators provide measurement references for maintenance.

• Lifting specifications: 3/4 ton rated capacity, 10' standard lift, one chain fall and Grade 80 load chain with a 6.0 mm diameter.
• Operating measurements: 31 lbs of force required at rated lifting capacity, a 12" lever and 12" minimum hook spacing.
• Dimensional references: H = 12-3/4"; D = 12"; C = 37.5 mm; B = 3-1/2"; A = 5-7/8".
• Testing and manufacturing: load-tested at 150% of its rated capacity, with a certificate supplied; meets ASME B30.21 requirements and is manufactured in an ISO 9001-2000 certified factory.
• Listed weights: product weight 15.4 lb (7.6 kg); shipping weight 18 lb (8.2 kg).
• Product identification: JET Tools VLP Series, manufacturer part number VLP-75-10; catalogue SKU SUW-110306.
