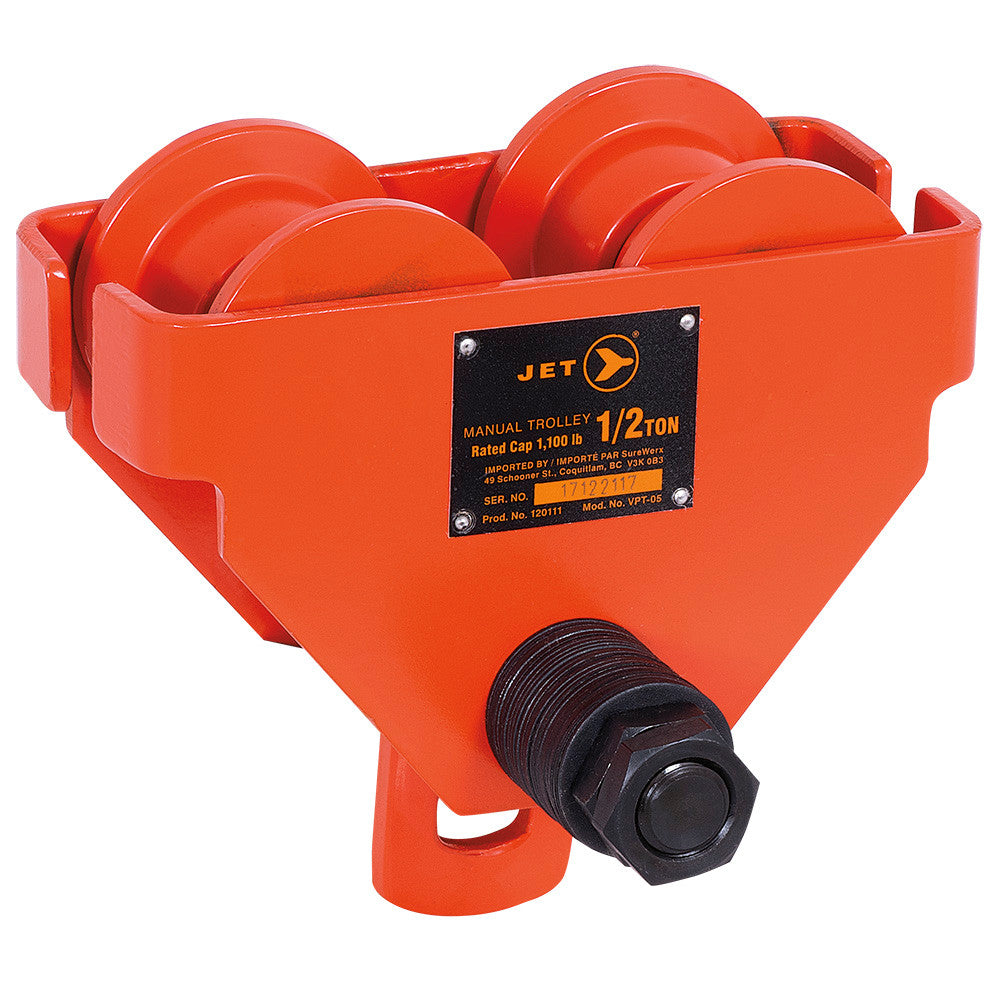

The JET Tools VPT-05 is a VPT Series manual trolley rated for 1/2 ton (1,100 lbs). Designed for H-beam and I-beam tracks, it accommodates both straight runs and curves. Its adjustable fit supports different beam widths and flanges, while integrated drop stops/bumpers provide load support if a wheel fails. Installation and removal can be carried out anywhere along the track, rather than only at an end.

• Capacity rating: 1/2 ton, equivalent to 1,100 lbs.
• I-beam flange width adjustment: 2-1/2” to 5-1/2”.
• Minimum track curve radius: 36".
• Integrated drop stops/bumpers also keep the wheels from making contact with other trolleys sharing the track.
• Shipping weight: 15.5 lb (7 kg).
• Dimensions by reference: H — 4-29/64"; C — 7-13/16"; B — 8-11/32"; A — 9-1/16".
