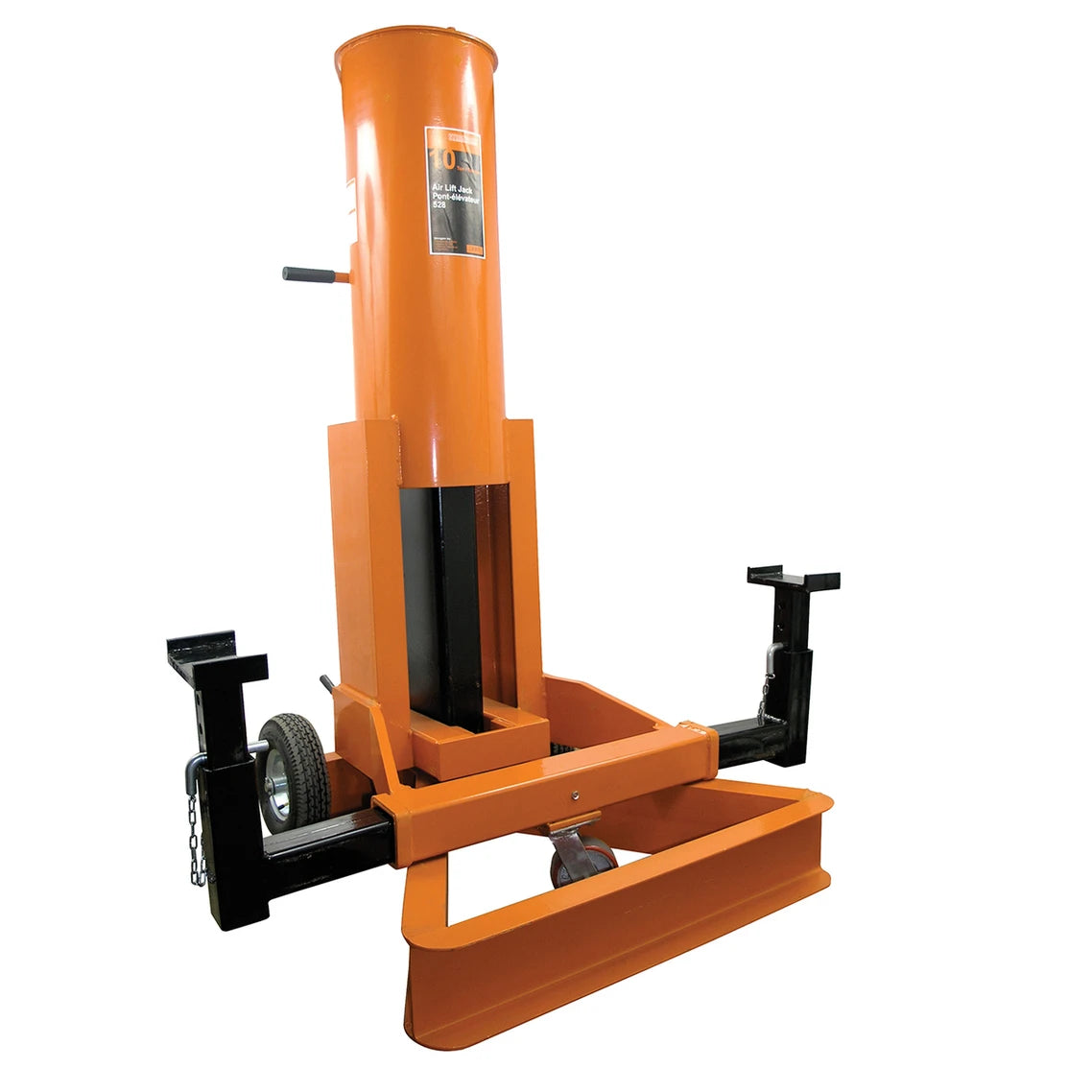

The Strongarm 528 is a heavy-duty air end lift jack for vehicle lifting applications, delivering a 10 ton capacity with a 200 PSI air supply. Reversible saddle arms allow access to lower lifting points, while the saddles sit 13" forward of the cylinder. A swivelling front caster and two pneumatic tires at the rear support manoeuvring. Shipping weight is 750 lb (341 kg). This unit is identified by MPN 528 and SKU SUW-030457.

• Steel saddles measure 4" x 6", with an adjustable saddle spread of 36"–50" for different vehicle applications.
• A three-way valve provides fine control during both raising and lowering.
• The mechanical safety lock engages automatically at five lifting heights within a 17-1/2"–50" range.
• Two fittings serve the air control valve: one accepts the shop air supply; the other is for a Schrader valve.
• Rated capacity: 10 T. Working air pressure: 200 PSI.
• Reported product measurements: first dimension 14168.00"; second dimension 43.50"; third dimension 37.75".
