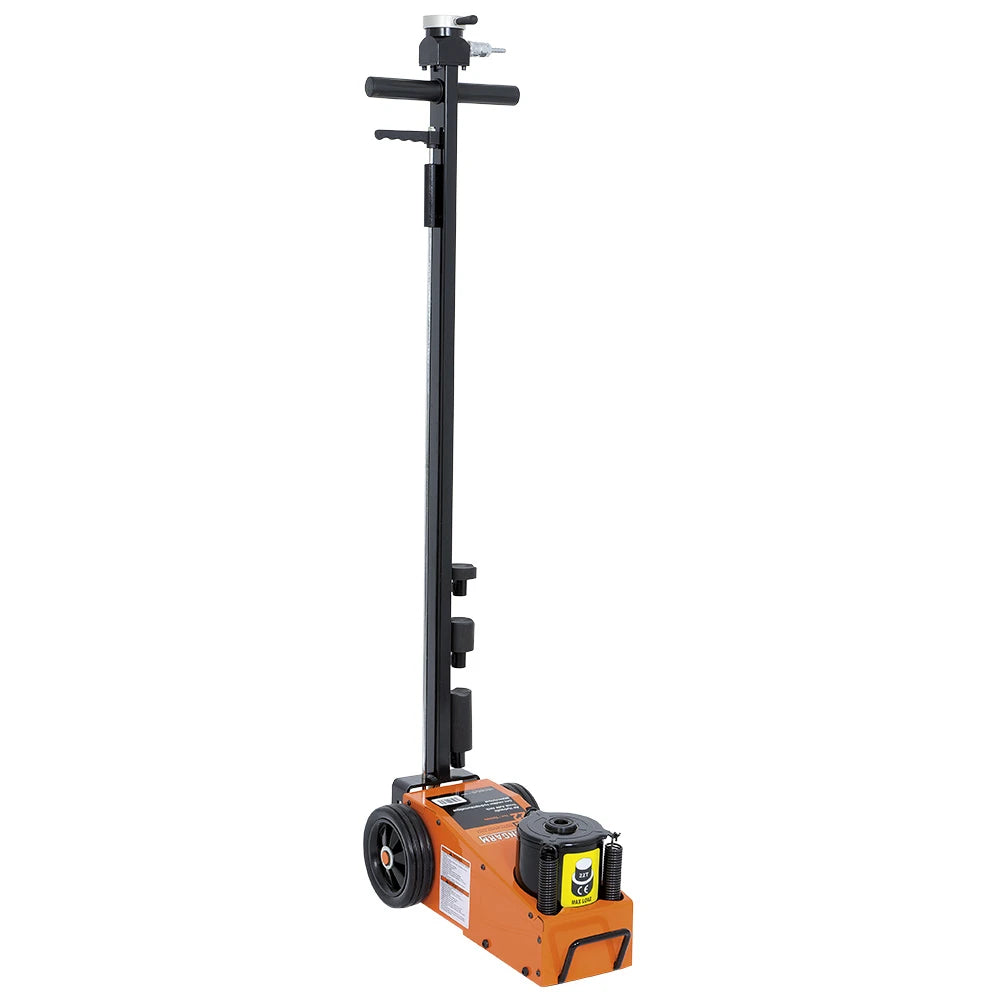

The Strongarm 722SHD is a super heavy duty truck jack with a single-stage design and 22 Ton capacity. Intended applications span heavy duty trucking, agriculture, fleet operations, construction and military work. Its air/hydraulic system uses two operating speeds to bring the ram to the load quickly. A long, position-locking handle supports placement where access is restricted, while overload protection and metered descent help manage lifting and lowering.

• Model: 722SHD; SKU: SUW-030450. Minimum height: 215 mm (8-1/2"); maximum height: 356 mm (14"); lift travel: 5-1/2" (141 mm). Required working air pressure: 90–120 PSI.
• The 138 cm (54") handle has three locking positions to help position the jack in confined locations.
• An industrial-derived piston-head seal design supports sealing at both low and high pressures under severe loads. Double-polished, chromed pistons provide tighter tolerances to limit oil bypass and ram scoring.
• A safety valve provides overload protection, and an integrated descent-metering valve controls lowering. Lowering rates are 70 mm in 5 seconds with a load and 75 mm in 5 seconds without a load.
• Air assistance during lowering works with three self-returning springs to speed ram retraction.
• Includes three heat-treated extensions measuring 20, 50 and 100 mm for different lifting requirements. Cycle testing reached 20,000 cycles.
