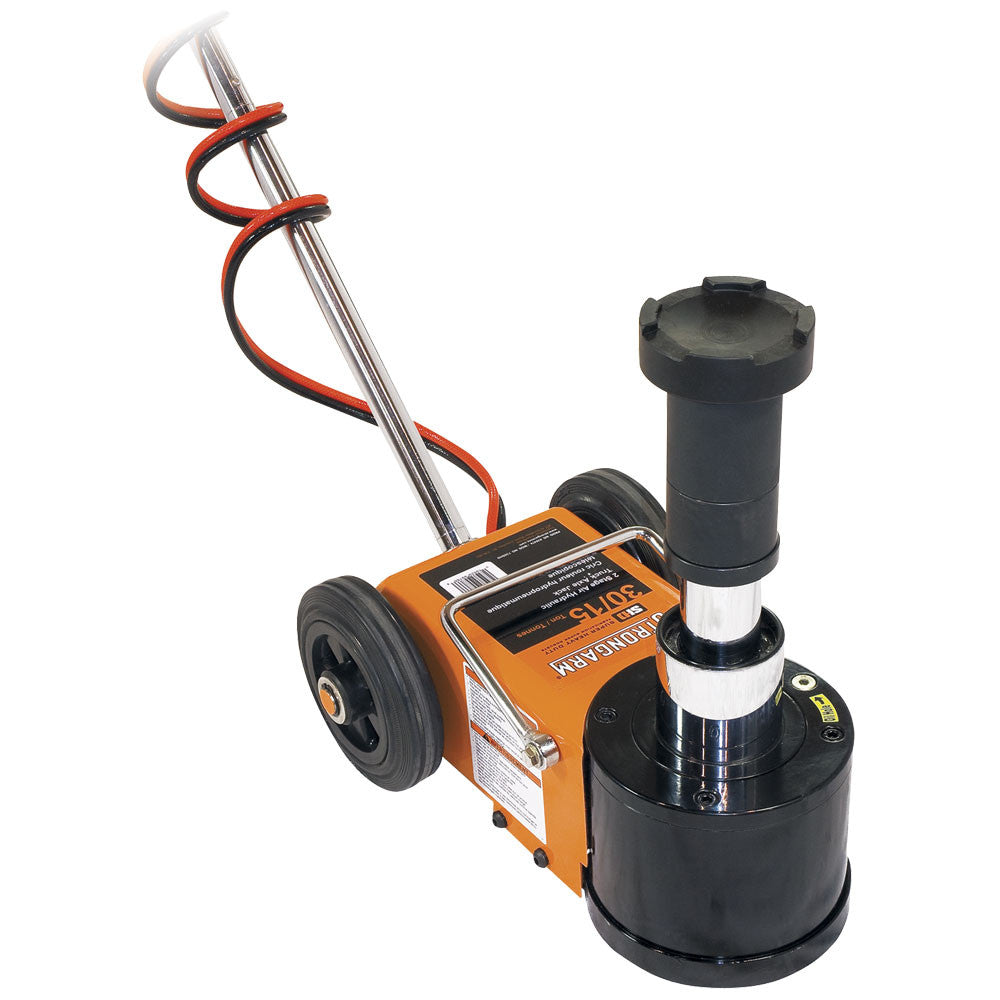

The Strongarm 730SHD is a super heavy duty air hydraulic truck jack intended for service vehicles. Its two-stage lifting system provides 30 ton capacity on the first stage and 15 ton on the second. A removable, extra-long handle and durable rear wheels help position the jack where access is restricted. Weighing 30 kg (66 lb), it combines portability with controlled load descent, air-assisted ram retraction and built-in overload protection.

• Identification: model 730SHD; SKU SUW-030474. Supplied with a saddle adaptor and two extensions measuring 75mm and 45mm.
• Height specifications: minimum height 150 mm (5.92"); high height at 15 Ton, 11.5"; lift, 5.59".
• Working air pressure for 30 Ton operation: 0.8–1.0 Mpa (116–145 PSI).
• An integrated descent metering valve controls lowering, while air assistance accelerates ram retraction. The overload safety valve protects the unit against excessive loads.
• The industrial-derived piston head seal supports sealing at low and high pressures under severe loads. Double-polished, chromed pistons permit tighter tolerances to limit oil bypass and ram scoring.
• Tested at -25˚C and +45˚C, with off-centre load testing also performed. Shipping weight: 35 kg (77 lb).
