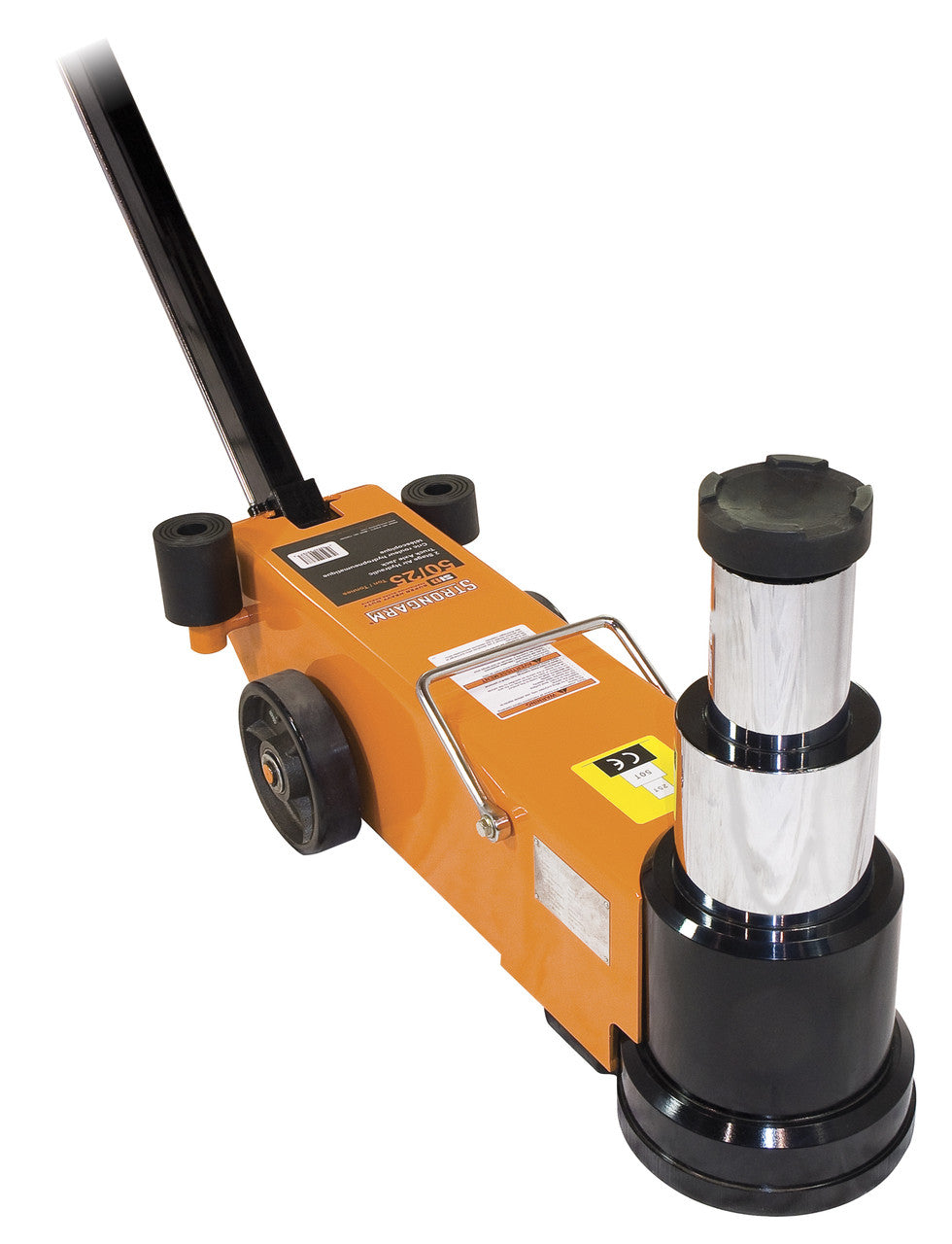

The Strongarm 750SHD is a super heavy duty air hydraulic truck jack for trucking, agricultural and fleet work. Its two-stage lifting system delivers 50 T on the first stage and 25 T on the second. An industrial-derived piston-head seal supports load holding at both low and high pressures, while a one-piece base supports stability. Controlled descent, air-assisted retraction and overload protection are built into the design, with a long, lockable handle for positioning where access is restricted.

• Model: 750SHD; SKU: SUW-030475. First-stage capacity: 50 T; second-stage capacity: 25 T. Working air pressure for 50 Ton operation: 0.8–1.2 MPa (116–174 PSI).
• Lowered height: 215 mm (8.46 inches). Maximum height at 25 Ton: 446 mm (17.56 inches). Lift travel: 231 mm (9.09 inches).
• The 138 cm (54-inch) handle has three locking positions. Supplied accessories include two extensions, measuring 75 mm and 45 mm, plus a saddle adaptor.
• Double-polished, chromed pistons support tighter tolerances to limit oil bypass and ram scoring. The piston-head seal is designed to maintain its hold under severe loads at low and high pressures.
• An integral descent-metering valve controls load lowering; air assistance accelerates ram retraction. A built-in overload safety valve protects the jack against damage from excessive loads.
• Testing includes temperatures of -25°C and +45°C, along with off-centre loading. Unit mass: 72 kg (161 lb); packed shipping mass: 75 kg (165 lb).
