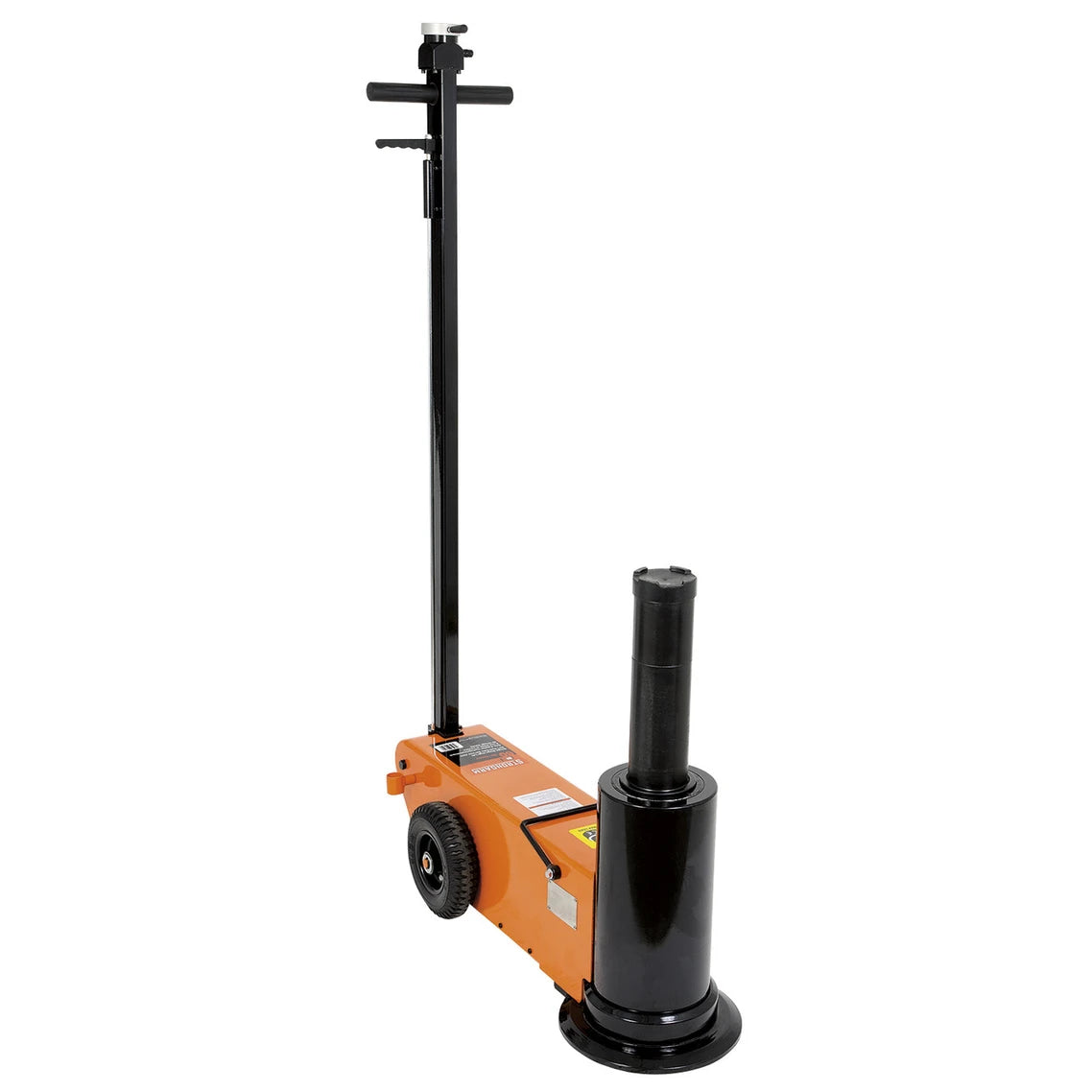

The Strongarm 860SHD is a single-stage, high-lift air/hydraulic service jack with a 60 T capacity, intended for heavy-duty trucking, agriculture, fleet operations, construction and military applications. Pneumatic wheels support manoeuvring, while its adjustable long handle helps with positioning where access is restricted. Testing includes temperatures of -25°C and +45°C, along with off-centre loading. Its construction combines load-supporting features with controlled lowering, air-assisted ram retraction and protection against excessive loads.

• Height range: 420 mm low to 1,031 mm high. Working air pressure: 116–174 PSI.
• The 138 cm (54-inch) handle offers three locking positions for placement in difficult-to-access areas.
• An industrial-derived piston-head seal design supports sealing at both low and high pressures, helping maintain load hold under demanding conditions.
• A one-piece base supports strength and load stability. Double-polished, chromed piston surfaces permit tighter tolerances, reducing oil bypass and ram scoring.
• An integral Descent Metering Valve controls load lowering; air assistance accelerates ram retraction. A built-in overload safety valve protects the jack from excessive-load damage.
• Includes two extensions, measuring 100 mm and 200 mm, plus a saddle adaptor. Manufacturer part number: 860SHD; SKU: SUW-030473.
