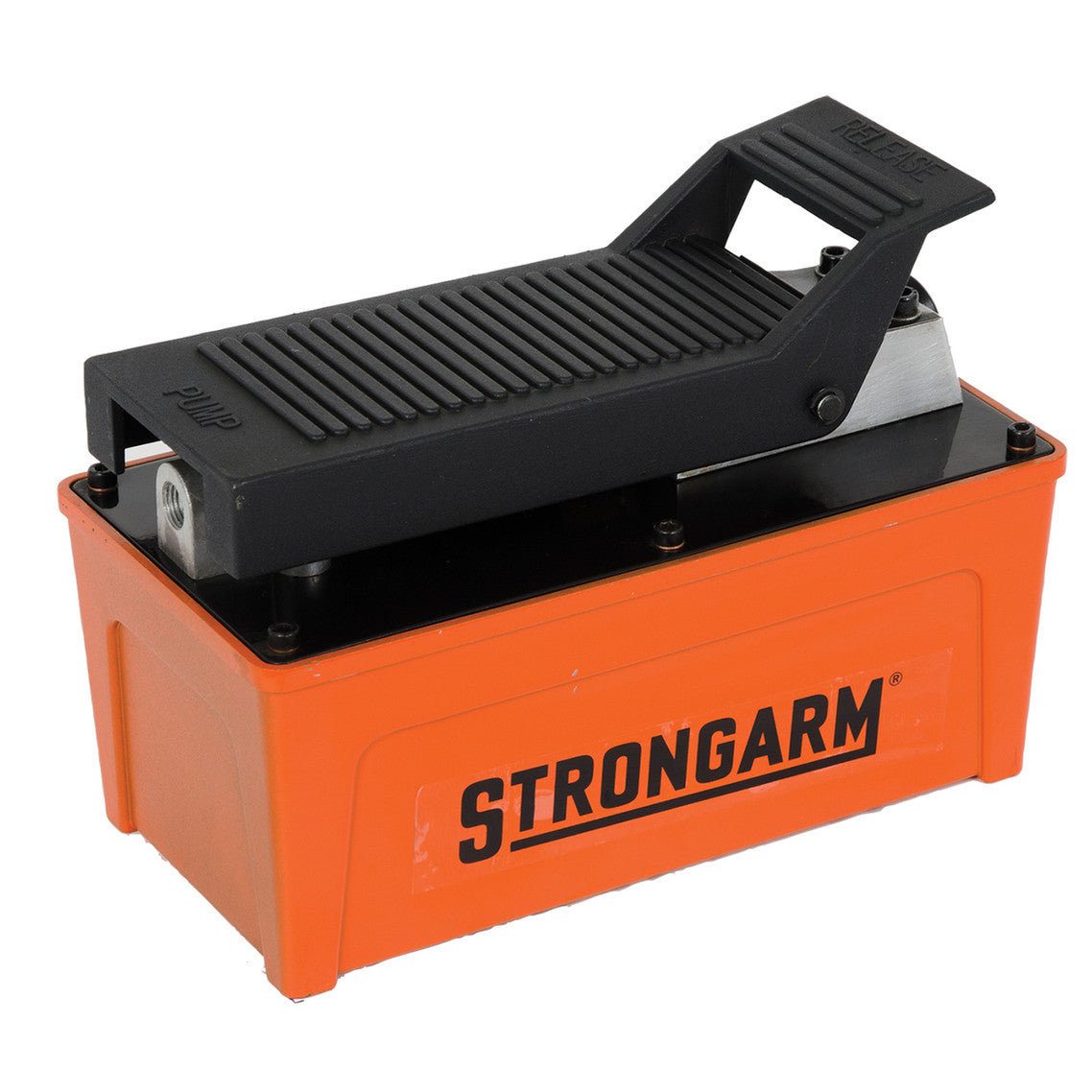

The Strongarm AHP002 air/hydraulic foot pump supplies hydraulic pressure for use with cylinders, presses and other hydraulic equipment. Operated by a foot pedal, it combines an aluminum alloy reservoir with filters for both air and oil to help limit damage caused by environmental contaminants. An exhaust muffler reduces operating noise, while an internal load-limiting mechanism protects against overload. This pump carries SKU SUW-033125 and product number 033125.

• Hydraulic pressure rating: 10,000 PSI; air supply pressure: 90–145 PSI (0.6–1.0 MPa).
• Threaded connections: 1/4" NPT air inlet and 3/8"-18 NPT oil outlet.
• Usable oil volume: 98 in³.
• Flow rate: 49.5 in³/min without load and 7.6 in³/min under load.
• Overall dimensions: 10.3 inches long × 5.3 inches wide × 7.3 inches high.
• Product weight: 19 lb / 9 kg.
