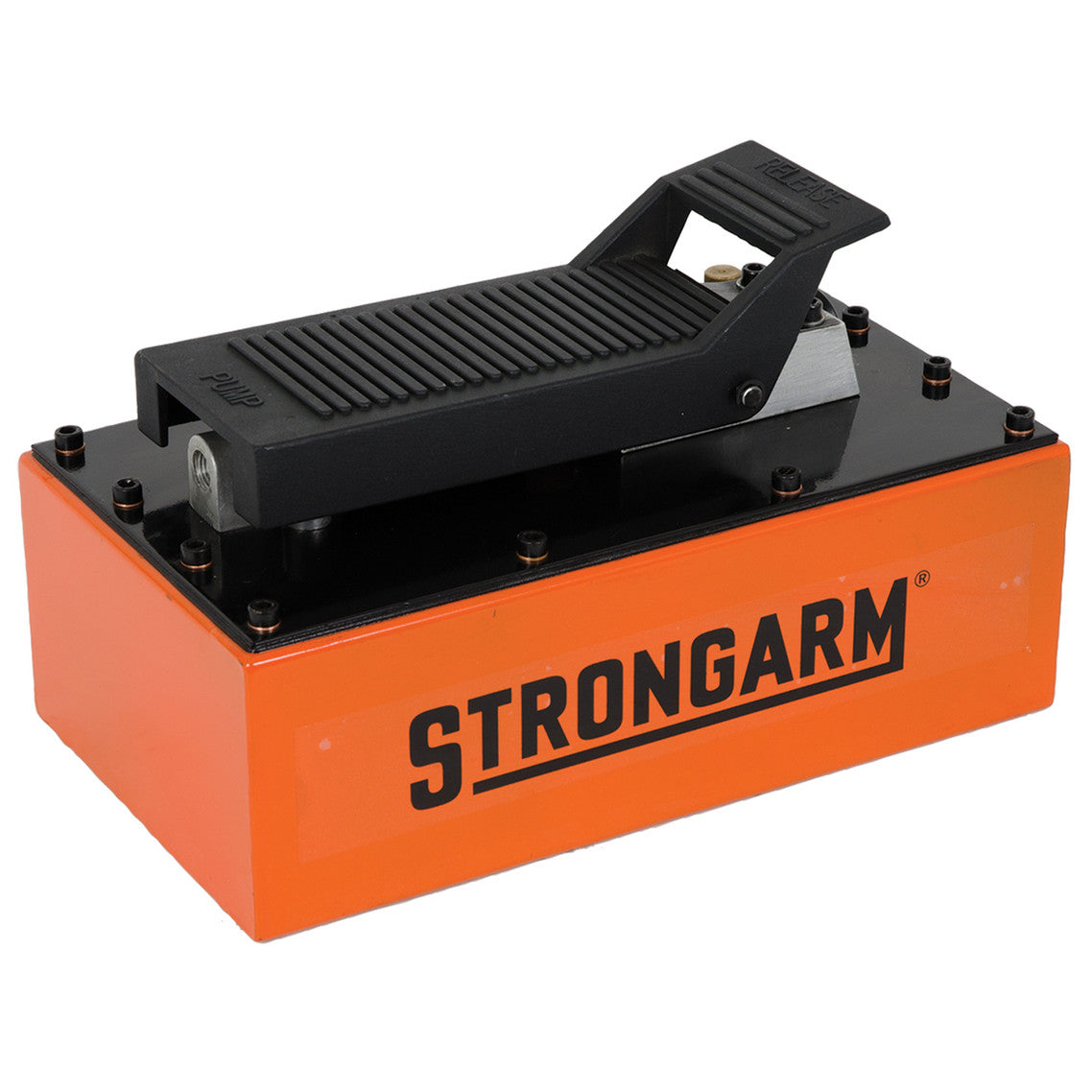

The Strongarm AHP003 air/hydraulic foot pump supplies hydraulic pressure up to 10,000 PSI for use with cylinders, presses and other hydraulic equipment. Foot-pedal control operates the pump, which has a steel reservoir and an exhaust muffler to keep operating noise down. An internal load limiter protects against overload, while filters on both the air and oil sides help limit damage caused by environmental contaminants.

• Identification: model AHP003; SKU SUW-033126; product number 033126.
• Pressure specifications: hydraulic rating of 10,000 PSI; required air source of 90–145 PSI (0.6–1.0 MPa).
• Port connections: air inlet thread 1/4" NPT; oil outlet thread 3/8"-18 NPT.
• Usable oil capacity: 275 in³ in a steel reservoir.
• Flow rates: 49.5 in³/min without load and 7.6 in³/min under load.
• Overall dimensions: 12.5 inches long × 7 inches wide × 7.5 inches high; weight: 28 lb / 13 kg.
