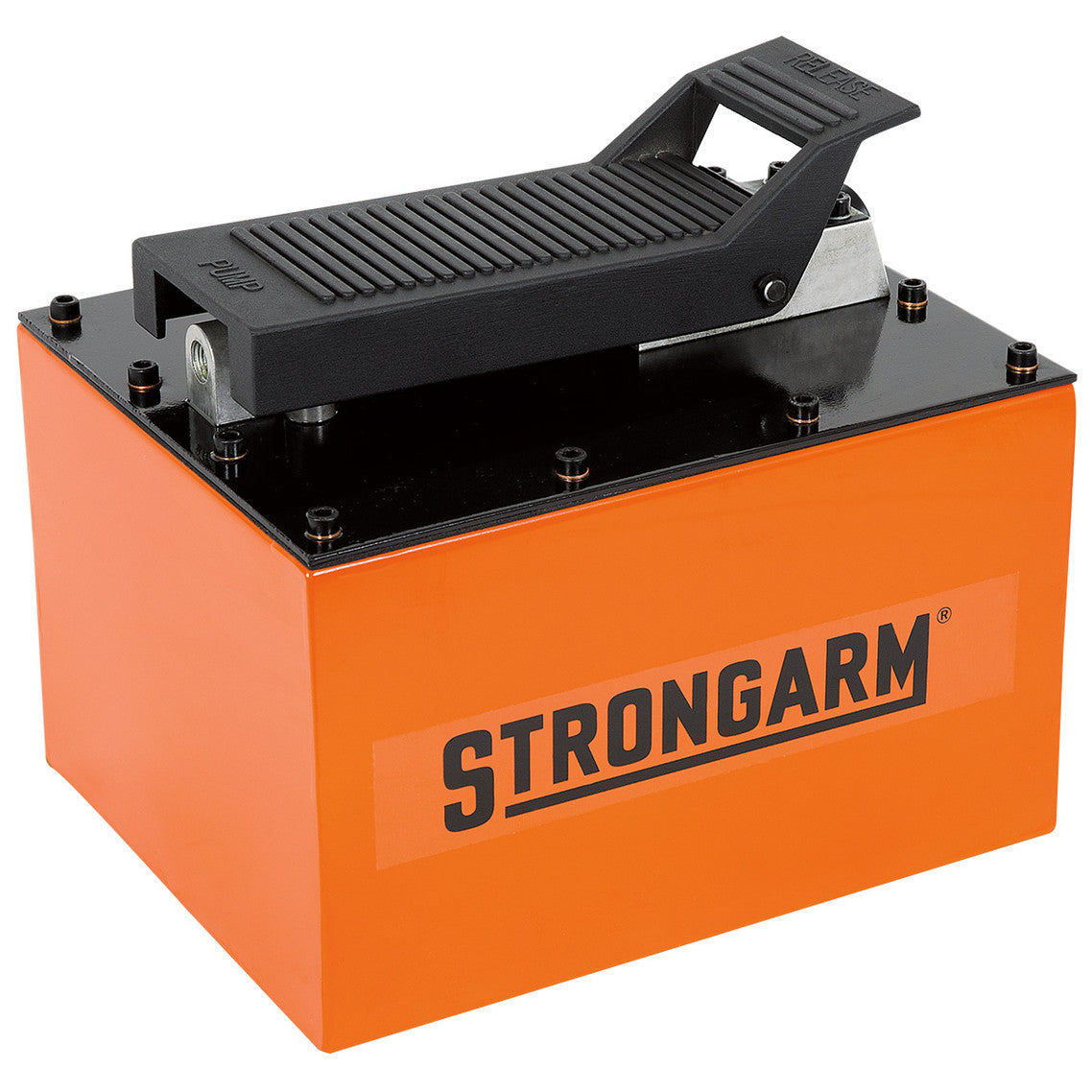

The Strongarm AHP004 air/hydraulic foot pump delivers hydraulic pressure up to 10,000 PSI for use with hydraulic cylinders, presses and other hydraulic equipment. Foot-pedal control operates the pump, which has a steel reservoir and an internal load limiter for overload protection. An exhaust muffler reduces operating noise, while filters on both the air and oil circuits help limit damage caused by environmental contaminants. SKU: SUW-033127; product number: 033127.

• Hydraulic pressure rating: 10,000 PSI; required air-source pressure: 90–145 PSI.
• Usable oil capacity: 442 in³.
• Flow rate: 49.5 in³/min without load and 7.6 in³/min under load.
• Port connections: 1/4" NPT air inlet and 3/8"-18 NPT oil outlet.
• Dimensions: 11 inches long × 8.8 inches wide × 10 inches high.
• Product weight: 36 lb / 16 kg.
