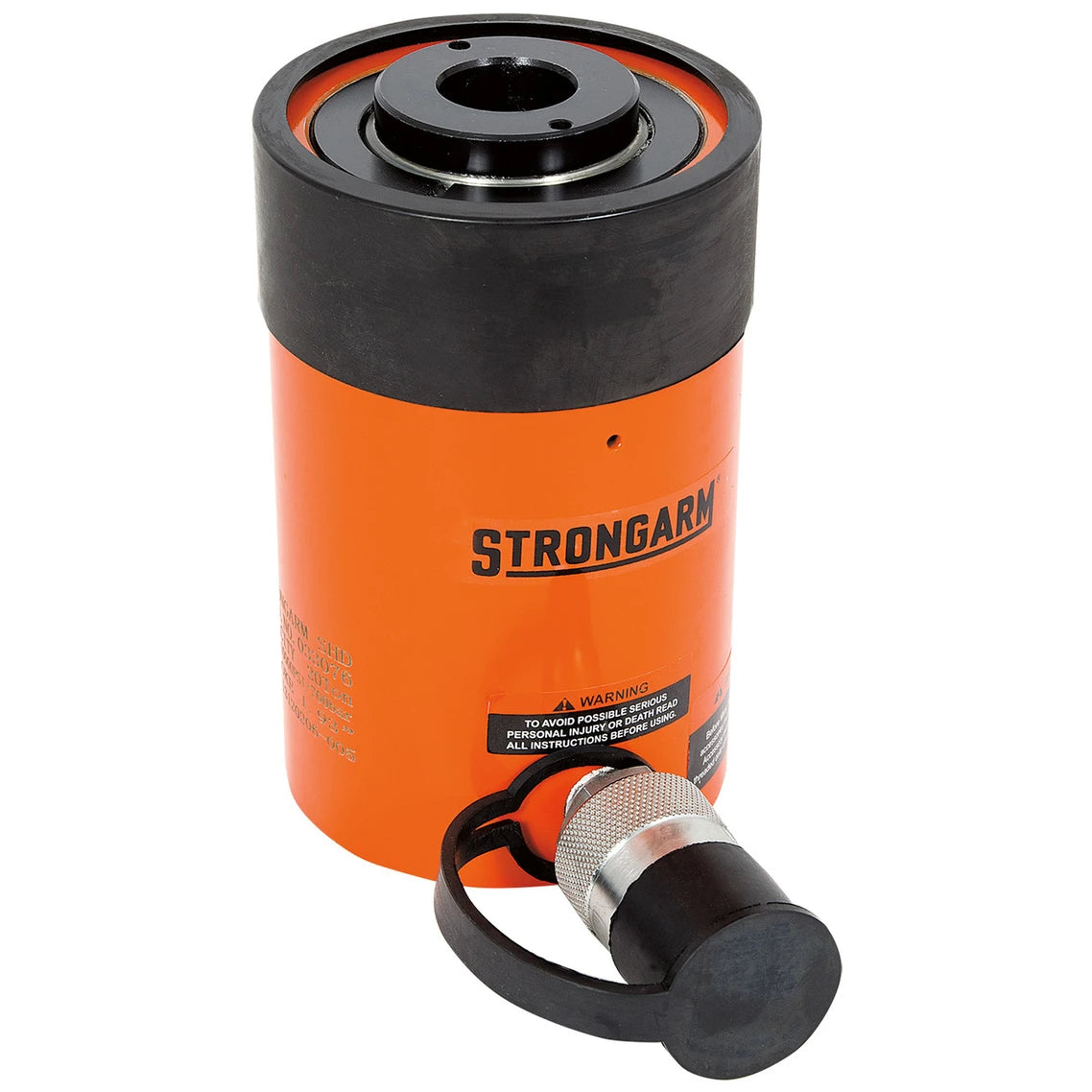

The Strongarm SACH202 is a super heavy duty, single acting cylinder with a hollow centre and spring return. Its hollow plunger accommodates pushing and pulling forces, while threads on the collar and plunger provide attachment points for fixtures. High-strength alloy steel construction supports durability and safety, and a baked enamel coating provides corrosion resistance. This 20 Metric Ton cylinder is identified by SKU SUW-033076 and product number 033076.

• Rated capacity at 700 Bar (10,000 PSI): 20 Metric Ton / 22 US Ton. Meets ASME B-30.1.
• Stroke: 1.93 in; effective cylinder area: 5.08 in²; oil capacity: 9.80 in³.
• Height when collapsed: 6.38 inches; height when extended: 8.31 inches. Outside diameter: 3.90 inches; piston rod diameter: 2.17 inches; centre hole diameter: 1.06 inches.
• Collar thread: 3-7/8 - 12; collar thread length: 1.50 inches.
• Base fixture holes: 3.25-inch bolt circle, 3/8 - 16UNC thread and .37-inch thread depth.
• Quick couplings: 3/8"-18NPT. Product weight: 16.06 lb / 7.3 kg.
