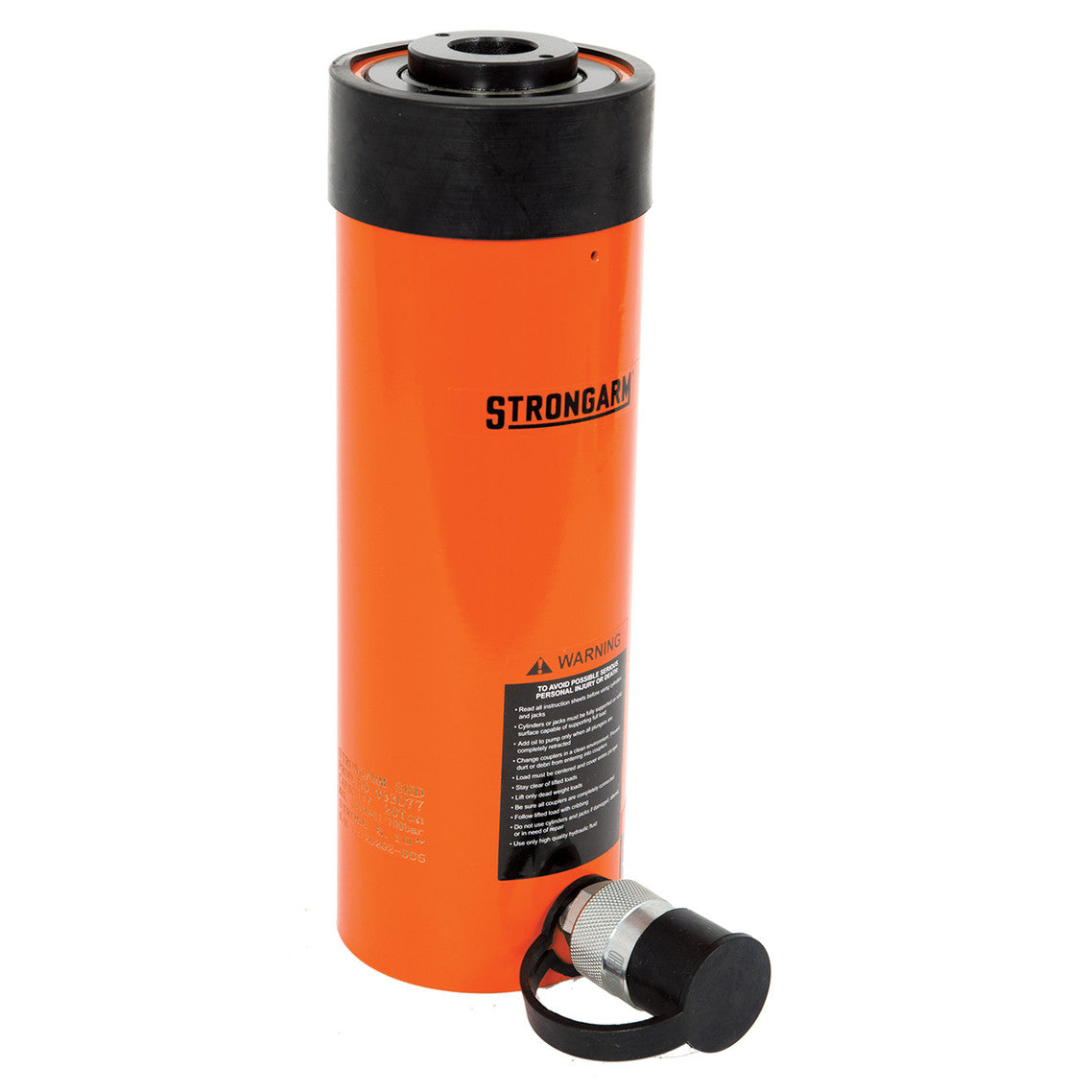

The Strongarm SACH206 is a super heavy duty, single acting cylinder with a hollow plunger that supports pushing and pulling applications. Built from high strength alloy steel, it uses a spring return and a baked enamel coating to resist corrosion. Threads on the collar and plunger provide fixture attachment points, while 3/8"-18NPT quick couplings provide the connection. Its rated capacity is 20 metric tons at 700 Bar (10,000 PSI), and it complies with ASME B-30.1.

• Identification: model SACH206; SKU SUW-033077; product number 033077.
• Capacity and hydraulics: 20 metric tons / 22 US tons at 700 Bar (10,000 PSI); effective cylinder area of 5.08 in²; oil capacity of 31.01 in³.
• Travel and height: 6.10 in stroke; collapsed height (A) of 12.05 in; extended height (B) of 18.15 in.
• Body dimensions and weight: outside diameter (D) of 3.90 in; piston rod diameter (F) of 2.17 in; centre hole diameter of 1.06 in; weight of 29.48 lb / 13.4 kg.
• Collar attachment dimensions: collar thread (C) of 3-7/8 - 12 in; collar thread length (X) of 1.50 in. The plunger is also threaded for fixture attachment.
• Base fixturing dimensions: bolt circle (U) of 3.25 in; thread (V) of 3/8 - 16UNC; thread depth (Z) of .37 in.
